Individual Nozzles and Components

Dramm Irrigation Products have been a staple in greenhouses throughout the world for decades. Our popular products like the Pin-Perfect Nozzle, the Nifty-Nozzle and the Dribble Tube are still available and work in a number of situations.

Each of these items is listed below.

For more on our newer systems, please visit their individual pages listed above.

Pin-Perfect Nozzle


The perfect overhead watering nozzle for foliage plants, bedding plants, geraniums and all 4 to 6 pot crops. Pin-Perfect Nozzles can be easily turned ÙÙoffÙ_ by pushing the pin down and ÙÙonÙ_ again by pulling the pin up. Each nozzle produces a 10 foot diameter spray pattern when your water pipeline is 5 feet above the crop.

Pin-Perfect Nozzles should be installed on the topside of the pipeline or on top of 1/2 PVC risers. For uniform coverage, Pin-Perfect Nozzles should be spaced so that their spray patterns overlap. With the pipeline at 5 feet over the crop your Pin-Perfect Nozzles will produce a 10 foot diameter spray pattern. Space each nozzle 5 feet apart so the spray pattern will overlap to the next nozzle. Multiple pipelines should be spaced 10 feet apart for complete coverage. To decrease the spray diameter of the Pin-Perfect to 7 feet, lower the water pipeline to 3 feet over the crop and space the nozzles at 3 1/2 foot intervals.

To compensate for pressure loss and ensures uniform water distribution, simply change the color coded nozzle to the nozzle with the next higher output rate. This changing of nozzles will compensate for pressure loss and produce approximately the same amount of output all the way down the pipeline. As a rule of thumb, we recommend changing color coded nozzles every (6th) sixth nozzle.

Before you begin an installation, we recommend that you install one pipeline based on the guidelines presented. After the first pipeline is installed, tested and adjusted, remaining lines can be set-up following the same specifications as the first.

Use Pin-Perfect Nozzles in combination with Dramm Run-Out Valves, No-Drip Risers and No-Drip Extension Check Valves to control water drip.

Pin-Perfect Nozzle Flow Rate in Gallons Per Minute
ITEM COLOR SIZE 15 PSI22 PSI29 PSI36 PSI
PPN-BR Brown 2.55 mm 0.61 0.74 0.85 0.95

Pin-Perfect Nozzle



ITEM COLOR SIZE 15 PSI22 PSI29 PSI36 PSI
PPN-GN Green 2.65 mm 0.69 0.82 0.95 1.08
PPN-GR Grey 2.75 mm 0.77 0.9 1.03 1.17
PPN-BL Blue 2.80 mm 0.79 0.95 1.11 1.27
PPN-RD Red 2.95 mm 0.87 1.03 1.21 1.4
PPN-OR Orange 3.05 mm 0.9 1.11 1.29 1.48
PPN-BK Black 3.25 mm 0.98 1.21 1.4 1.6

Pin-Perfect Nozzle Replacement Pin


Replacement pin for the Pin-Perfect Nozzle. The color of the pin designates the nozzle output rate. Replace pins with the same color as the original pin color. The diameter of the orifice in the black body of the Pin-Perfect Nozzle determines the flow rate for that nozzle. All pins have the same diameter and do not affect flow rate. Specify two letter color code when ordering.

ITEM COLOR SIZE
PPNP-360 - -

180_ Pin-Perfect Nozzle Pin


The Dramm 180_ Pin replaces any color pin on the Pin Perfect Nozzles. This allows for a 180_ pattern without changing nozzles. As the flow rate for the Pin Perfect Nozzle is controlled by the diameter of the nozzle body. The 180_ Pin offers a 180_ pattern without changing the flow. Color: black.

ITEM COLOR SIZE
PPNP-180 - -

360_ Nifty Nozzles


Dramm 360_ Nifty Nozzles offer an economical solution for simple ÙÙoverheadÙ_ or ÙÙon the benchÙ_ watering systems. These ÙÙniftyÙ_ nozzles produce a 10 foot diameter spray pattern when your water pipeline is 5 feet above the crop. Nifty Nozzles can be installed on the topside of the pipeline, on bottom side of the pipeline or on top of 1/2 PVC risers. Bottom side installations require No-Drip Check Valves to prevent drip.

To provide uniform coverage the nozzles should be spaced so that their spray patterns overlap. With the pipeline 5 feet over your crop, Nifty Nozzles will produce a 10 foot diameter spray pattern. Space each nozzle 5 feet apart so the spray pattern will overlap to the next nozzle. Multiple pipelines should be spaced 10 feet apart for complete coverage. To decrease the spray diameter of the Nifty Nozzle to 7 feet, lower the water pipeline to 3 feet over the crop and space the nozzles at 3 1/2 foot intervals. Multiple pipelines should be spaced 7 feet apart for complete coverage.

For ÙÙon-the-benchÙ_ watering (for cut flower crops), we recommend using lower flow rate Brown, Green or Grey Nifty Nozzles spaced 3 feet apart, one pipeline down the center of each bench or bed.

Before you begin an installation, we recommend that you install one pipeline based on the guidelines presented. After the first pipeline is installed, tested and adjusted, remaining lines can be set-up following the same specifications as the first.

Use 360_ Nifty Nozzles in combination with Dramm Run-Out Valves, No-Drip Risers and No-Drip Extension Check Valves to control water drip.

Nifty Nozzle Flow Rate in Gallons Per Minute
ITEM COLOR SIZE 15 PSI22 PSI29 PSI36 PSI
360NN-BR Brown 1.75 mm 0.29 0.35 0.41 0.46

360_ Nifty Nozzles



ITEM COLOR SIZE 15 PSI22 PSI29 PSI36 PSI
360NN-GN Green 2.00 mm 0.4 0.49 0.57 0.63
360NN-GR Grey 2.25 mm 0.51 0.62 0.72 0.8
360NN-BL Blue 2.50 mm 0.63 0.77 0.89 0.99
360NN-RD Red 2.75 mm 0.76 0.93 1.07 1.2
360NN-OR Orange 3.00 mm 0.9 1.1 1.28 1.43

Assembly Insert


An Assembly Insert is a threaded gasket that provides a quick installation and leak-free seal for Dramm Irrigation Nozzles. The interior female thread is 3/8 Witworth_ the same thread specification used on the Pin-Perfect, Nifty, Misty Mist and Drop style nozzles.

To Install, use a 7/16 drill bit to drill holes into schedule 40 PVC pipe, aluminum pipe or galvanized pipe. Caution: Do not use schedule 80 PVC. The Assembly Insert will not be able to create an effective seal due to the wall thickness of the schedule 80 PVC pipe.

Install the Assembly Insert into the hole and then screw in the nozzle. The width of the nozzle expands the Assembly Insert as it is screwed into place_ creating a leak-free seal without having to drill and tap every hole. Pipes should be clamped and drilled using a drill press or alignment jig to ensure perfectly round holes and straight alignment. Recommended for use at operating pressures up to 50 PSI.

ITEM COLOR SIZE
AI - -

Misty Mist Nozzle


Dramm 360_ Misty Mist Nozzles are for overhead mist propagation, irrigating plugs or raising humidity levels. Misty Mist Nozzles produce a 6 foot diameter spray pattern when your water pipeline is 5 feet above the crop.

Misty Mist Nozzles can be installed on the topside of the pipeline, on bottom side of the pipeline or on top of 1/2 PVC risers. Bottom side installations require No-Drip Check Valves to prevent drip.

To provide uniform coverage in overhead mist propagation or plug irrigation, the nozzles should be spaced so that their spray patterns overlap. With the pipeline 5 feet over your crop, Misty Mist Nozzles will produce a 6 foot diameter spray pattern. Space each nozzle 3 feet apart so the spray pattern will overlap to the next nozzle. Multiple pipelines should be spaced 6 feet apart for complete coverage. To decrease the spray diameter of the Misty Mist to 5 feet, lower the water pipeline to 3 feet over the crop and space the nozzles at 2 1/2 foot intervals. Multiple pipelines should be spaced 5 feet apart for complete coverage.

For raising humidity levels or mist cooling, use Blue/White Misty Mist Nozzles. It is recommended that you automate the system using short ÙÙonÙ_ cycle times due the relatively high output rate of the nozzle. The pipeline should be suspended as high as possible in the middle of each bay without interfering with the spray pattern. Space nozzles 6 feet apart. There is no need to worry about overlapping spray patterns since the goal is to evaporate water into the air versus allowing the water to drop to the soil.

Before you begin an installation, we recommend that you install one pipeline based on the guidelines presented. After the first pipeline is installed, tested and adjusted, remaining lines can be set-up following the same specifications as the first.

Use 360_ Misty Mist Nozzles in combination with Dramm Run-Out Valves, No-Drip Risers and No-Drip Extension Check Valves to control water drip.

Misty Mist Nozzle Flow Rate in Gallons Per Minute
ITEM COLOR SIZE 36 PSI73 PSI
MM-BW Blue / White 1.00 mm 0.17 0.22

Misty Mist Nozzle



ITEM COLOR SIZE 36 PSI73 PSI
MM-RW Red / White 1.25 mm 0.27 0.35
MM-KW Black / White 1.50 mm 0.39 0.5

High Pressure Misty Mist Nozzle


The High Pressure Misty Mist delivers an ultra fine spray_ ideal for mist cooling and raising humidity levels. These nozzles create a 10 foot diameter spray pattern.

High Pressure Misty Mist Nozzles should only be installed on the topside of the pipeline. Bottom side installations are not recommended due to the high pressures involved.

Space nozzles 10 feet apart with the pipeline suspended as high as possible in the middle of each bay_ without interfering with the spray pattern of the nozzle. There is no need to worry about overlapping spray patterns since the goal is to evaporate water into the air versus allowing the water to drop to the soil.

Please note that high pressure pumps and filtration equipment are required for these nozzles to work properly. High Pressure Misty Mist Nozzles can not be installed using Assembly Inserts. Threads must be tapped directly into the water pipeline_ use the drill & tap installation method explained at the end of this section.

Before you begin an installation, we recommend that you install one pipeline based on the guidelines presented. After the first pipeline is installed, tested and adjusted, remaining lines can be set-up following the same specifications as the first.

Use High Pressure 360_ Misty Mist Nozzles in combination with Dramm Run-Out Valves to control water drip.

High Pressure Misty Mist Nozzle Flow Rate in Gallons Per Minute
ITEM COLOR SIZE 73 PSI145 PSI290 PSI435 PSI
HP-GW Grey / White 0.75 mm 0.12 0.19 0.24 0.27

Drop Inversion Nozzle


Due to a special spinning mechanism which increases the spray diameter of the Drop Inversion Nozzle_ it is perfect for 24 foot wide quonset/ tunnel houses. It is used on overhead watering systems that require a larger droplet size or an extended coverage area from each nozzle. Drop Inversion Nozzles produce a 360_ 24 foot diameter spray pattern and must be installed on the bottom side of the pipeline with No-Drip Extension Check Valves.

To provide uniform coverage the nozzles should be spaced so that their spray patterns overlap. With the pipeline 5 feet over your crop, Drop Inversion Nozzles produce a 24 foot diameter spray pattern. Space each nozzle 12 feet apart so the spray pattern will overlap to the next nozzle. Multiple pipelines should be spaced 24 feet apart for complete coverage. To decrease the spray diameter, lower the water pipeline until the desired spray diameter is achieved.

Before you begin an installation, we recommend that you install one pipeline based on the guidelines presented. After the first pipeline is installed, tested and adjusted, remaining lines can be set-up following the same specifications as the first.

Use Drop Inversion Nozzles in combination with Dramm Run-Out Valves and No-Drip Extension Check Valves to control water drip.

Drop Inversion Nozzle Flow Rate in Gallons Per Minute
ITEM COLOR SIZE 22 PSI29 PSI36 PSI
DDI-GG Grey / Grey 2.25 mm 0.62 0.71 0.8

Drop Upright Nozzle


The Drop Upright Nozzle has a unique spinning mechanism which increases the spray diameter of this nozzle to 30 feet when your water pipeline is 5 feet above the crop. It is used on overhead watering systems that require a larger droplet size or an extended coverage area from each nozzle. Drop Upright Nozzles produce a 360_ 36 foot diameter spray pattern and must be installed on the topside of the pipeline or on top of 1/2 PVC risers.

To provide uniform coverage the nozzles should be spaced so that their spray patterns overlap. With the pipeline 5 feet over your crop, Drop Upright Nozzles produce a 30 foot diameter spray pattern. Space each nozzle 15 feet apart so the spray pattern will overlap to the next nozzle. Multiple pipelines should be spaced 30 feet apart for complete coverage. To decrease the spray diameter, lower the water pipeline until the desired spray diameter is achieved.

Before you begin an installation, we recommend that you install one pipeline based on the guidelines presented. After the first pipeline is installed, tested and adjusted, remaining lines can be set-up following the same specifications as the first.

Use Drop Upright Nozzles in combination with Dramm Run-Out Valves, No-Drip Risers and No-Drip Extension Check Valves to control water drip.

Drop Upright Nozzle Flow Rate in Gallons Per Minute
ITEM COLOR SIZE 22 PSI29 PSI36 PSI
DDU-GB Grey / Black 2.25 mm 0.62 0.71 0.8

T-Drop Nozzle


The T-Drop Nozzle was created for long narrow installations in which an elliptical spray pattern is desired. T-Drop Nozzles can be installed on the topside of the pipeline, on bottom side of the pipeline or on top of 1/2 PVC risers. Bottom side installations require No-Drip Check Valves to prevent drip.

To provide uniform coverage the nozzles should be spaced so that their spray patterns overlap. With the pipeline 5 feet over your crop and nozzles installed on the topside of your pipeline, T-Drop Nozzles will produce a 10 foot by 5 foot elliptical spray pattern. Space each nozzle 5 feet apart so the spray pattern will overlap to the next nozzle. Multiple pipelines should be spaced 5 feet apart for complete coverage. To increase the spray diameter of the T-Drop to 12 feet by 6 feet, install the nozzles on the bottom side of the pipeline and space the nozzles at 6 foot intervals. Multiple pipelines should be spaced 6 feet apart for complete coverage.

Before you begin an installation, we recommend that you install one pipeline based on the guidelines presented. After the first pipeline is installed, tested and adjusted, remaining lines can be set-up following the same specifications as the first.

Use T-Drop Nozzles in combination with Dramm Run-Out Valves, No-Drip Risers and No-Drip Extension Check Valves to control water drip.

T-Drop Nozzle Flow Rate in Gallons Per Minute
ITEM COLOR SIZE 15 PSI22 PSI29 PSI36 PSI
TDN Brown / Red 1.75 mm 0.29 0.35 0.41 0.46

Nozzle Plug


Oops! Did you drill one too many holes? Use the Dramm Nozzle Plug to cap off unwanted holes without replacing entire pipelines. Install as you would any other Dramm Nozzle or unscrew the unwanted Pin-Perfect, Nifty or Misty Mist Nozzle and simply replace it with the Nozzle Plug. Order a few extra_ we won't tell. Item Number: PLUG

ITEM COLOR SIZE
PLUG White Universal

36 Pin-Perfect Hanging Nozzle Assembly


The Dramm Hanging Nozzle system combines the superior flow rates and water patterns of Dramm nozzles with the flexibility of a below basket hanging irrigation system. Designed for misting or irrigation of crops on benches or on the ground, the Hanging Nozzle system uses the familiar Dramm nozzles with our No Drip Extension Check Valve and a leader tube.

Hanging nozzle systems offer solutions to the traditional problems of rigid pipe mounted irrigation systems. Hanging nozzle systems use a check valve and hang below the lateral which prevents dripping from the nozzle or the ÙÙshadowÙ_ dripping from the lateral. Dramm Hanging Nozzle Assemblies offer even watering. Gravity ensures that the nozzles are plumb preventing pattern distortion.

The entire assembly includes a leader tube with a barb fitting. The system uses flexible polyethylene tubing instead of PVC for ease of use and flexibility. A variety of leader tube lengths and nozzle choices are available. For flow rates see the specific nozzles.

To install a Dramm Pin-Perfect Hanging Nozzle System. Space the nozzle assemblies at 3_Ù spacings . Choose a leader tube length that places the nozzles below the hanging baskets or at a height of at least 3_Ù above the crop. Choose a Pin-Perfect Nozzle to suit your needs taking into account the flow rate of each nozzle and the flow rate of the lateral.

ITEM COLOR SIZE
HNP-__-36 - 36 inch

48 Pin-Perfect Hanging Nozzle Assembly



ITEM COLOR SIZE
HNP-__-48 - 48 inch
HNP-__-60 - 60 inch

180_ Nylon Nozzle



180_ spray pattern. Push into flexible 1/2 black poly tubing for perimeter watering. Use in conjunction with 90_ Nylon Nozzle.

ITEM COLOR SIZE
180NY-RD Red -

90_ Nylon Nozzle



90_ spray pattern. Push into flexible 1/2 black poly tubing for perimeter watering. Use in conjunction with 180_ Nylon Nozzle.

ITEM COLOR SIZE
90NY-GR Grey -

No-Drip Riser


No-Drip Risers elevate Dramm Irrigation Nozzles 2 1/4 above the PVC pipeline. When pipeline water flow is shut-off, excess water falls back into the pipeline due to the height of the No-Drip Riser. This ÙÙfall backÙ_ helps control drip from nozzles overhead. No-Drip Risers can also be used to elevate Dramm Irrigation Nozzles above the soil line when pipes are buried for landscape purposes.

ITEM COLOR SIZE
NDR - -

No-Drip Extension with Check Valve


No-Drip Risers elevate Dramm Irrigation Nozzles 2 1/4 above the PVC pipeline. When pipeline water flow is shut-off, excess water falls back into the pipeline due to the height of the No-Drip Riser. This ÙÙfall backÙ_ helps control drip from nozzles overhead. No-Drip Risers can also be used to elevate Dramm Irrigation Nozzles above the soil line when pipes are buried for landscape purposes.

ITEM COLOR SIZE
NDECV - -

Run-Out Valve


Run-Out Valves are designed to be installed at the end of 1-inch or 3/4-inch PVC pipelines. When the water is turned off, the Run-Out Valve will open and allow water to run out of the line_ eliminating drip from all overhead nozzles. Run-Out Valves require at least 15 PSI to work properly.

Use PVC cement and a 1 to 3/4 PVC reducer bushing to connect Run-Out Valves to 3/4-inch PVC pipelines. Follow the PVC cement directions regarding pipe preparation and drying times.

ITEM COLOR SIZE
ROV - -

Threaded Pipe Nipple


The Threaded Pipe Nipple is used to attach Dramm Irrigation Nozzles directly to 1/2 PVC pipe risers. To install, simply screw the Threaded Pipe Nipple onto the threaded 1/2 PVC pipe riser. This method is ideal when you want to eliminate overhead lines or when overhead lines are impossible. 1/2 NPT X 3/8 WW . Use with 1/2 threaded PVC risers.

ITEM COLOR SIZE
PN-2010 - -

Slip Fit Pipe Nipple


The Slip Fit Pipe Nipple is used to attach Dramm Irrigation Nozzles directly to straight (unthreaded) 1/2 PVC pipe risers. To install, use PVC cement to attach the Slip Fit Pipe Nipple onto PVC pipe risers. Follow the PVC cement directions regarding pipe preparation and drying times. This method is ideal when you want to eliminate overhead lines or when overhead lines are impossible. 1/2 NPT X 3/8 WW . Use with 1/2 straight PVC risers.

ITEM COLOR SIZE
PN-2020 - -

Drill Tap 3/8 Whitworth Thread



Creates a 3/8 Whitworth thread in PVC for Pin-Perfect, Nifty or Misty Mist Nozzles.

ITEM COLOR SIZE
DT-N - -

3/4 Kwik Klamp


The Kwik Klamp is a bracket with a hinged clip that can open and close. This handy device locks shut when closed, but can be opened to remove or replace pipelines. The Kwik Klamp makes pipe installation fast and easy. Made in the Netherlands from chemical resistant polypropylene. Available for 3/4 and 1 diameter pipes. Metric and additional inch sizes are available upon special order. Use with the Kwik Spacer.

ITEM COLOR SIZE
KK-75 - 3/4 in

1 Kwik Klamp



ITEM COLOR SIZE
KK-100 - 1 in
KK-125 - 1.25 in
KK-150 - 1.5 in
KK-200 - 2 in

3/4 Kwik Spacer


The Kwik Spacer slides into the Kwik Klamp and is used to create additional space between the pipe and wall. Multiple Kwik Spacers can be combined to create varying lengths in 3/4 increments. Made in the Netherlands from chemical resistant polypropylene. Available for 3/4 and 1 Kwik Klamps. Metric and additional inch sizes are available upon special order.

ITEM COLOR SIZE
KS-75 - 3/4 in

1 Kwik Spacer



ITEM COLOR SIZE
KS-100 - 1 in
KS-125 - 1.25 in
KS-150 - 1.5 in
KS-200 - 2 in

On Dribble Tube


Dramm On Only Dribble Tubes have permanently attached always ON weight emitters. All On Dribble Tubes are permanently assembled. Different sizes and different lengths can be combined for price breaks.

There are three types of Dribble Tubes available: DTS with a .045 inside diameter green tube, DTM with a .060 inside diameter brown tube- and DTL with a .075 inside diameter blue tube. All 3 types are available in lengths from 12 TO 42 long. Use of Dribble Tubes allows individual pot watering for a total bench. Dramm Dribble Tubes should be used on 5, 6, or 7 pot sizes.

ITEM COLOR SIZE
DTS-12 Green Tubing 12 in

On Dribble Tube



ITEM COLOR SIZE
DTS-18 Green Tubing 18 in
DTS-24 Green Tubing 24 in
DTS-30 Green Tubing 30 in
DTS-36 Green Tubing 36 in
DTS-42 Green Tubing 42 in
DTS-48 Green Tubing 48 in
DTS-60 Green Tubing 60 in
DTM-12 Brown Tubing 12 in
DTM-18 Brown Tubing 18 in
DTM-24 Brown Tubing 24 in
DTM-30 Brown Tubing 30 in
DTM-36 Brown Tubing 36 in
DTM-42 Brown Tubing 42 in
DTM-48 Brown Tubing 48 in
DTM-60 Brown Tubing 60 in
DTL-12 Blue Tubing 12 in
DTL-18 Blue Tubing 18 in
DTL-24 Blue Tubing 24 in
DTL-30 Blue Tubing 30 in
DTL-36 Blue Tubing 36 in
DTL-42 Blue Tubing 42 in
DTL-48 Blue Tubing 48 in
DTL-60 Blue Tubing 60 in

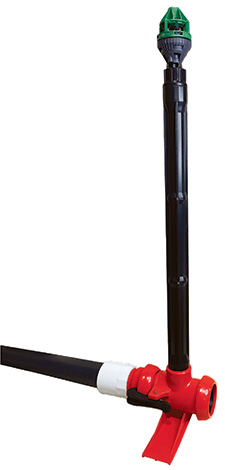

Dramm Stix


Dramm StixÙ_ are designed to be used when it is impossible to run overhead water lines but the grower wants to water or mist from overhead. Very useful on moveable benching! Dramm Stix are available in 5 different heights from 10 to 36 and include the poly tubing (-which is 30 longer than the stick-), Pin Perfect nozzles, and the Dramm StixÙ©. The orange base Dramm StixsÙ© allow you to change from water nozzles to mist nozzles.

Dramm StixÙ© have a 3/8 WW thread which accommodates the Pin Perfect, Nifty, Misty Mist, and 180_ Nifty Nozzles. Dramm stix come standard with green Pin Perfect Nozzles unless specific type and color-coded nozzle are requested. Nifty Nozzles spray a 7 ft. diameter circle- while Misty Mist Nozzles cover a 4.5 ft. diameter circle. Both will completely water 100 ft. of bench or bed in about 5 minutes. Water supply tubes are inserted at 42 inch intervals in 3/4 or 1 black polyethylene pipe. Benches up to 70ft. long- use 3/4 pipe, over 70 ft. long- use 1 pipe, over 120 ft. long- use 1 pipe with supply in middle.

ITEM COLOR SIZE
SS-10 - 10 in

Dramm Stix



ITEM COLOR SIZE
SS-16 - 16 in
SS-24 - 24 in
SS-30 - 30 in
SS-36 - 36 in

Dribble Ring for 6 & 7 Containers


Dramm Dribble Rings are designed for individual pot watering of larger size containers. The ring encircles the plant and water is emitted in 5 areas through 10 holes to ensure uniform watering in larger pot sizes. Dribble Rings come in 5 sizes with different length lead tubes: They are recommended for all plants in 6 & 7 containers, 8 - 10 containers, 13 containers, 16 containers, and the largest for use in 18 - 20 containers. Dramm Dribble Rings provide complete, uniform watering for large pots, B&B stock, tropical plantings and orchids.

Dribble Rings are fed with a .060 ID Tube. A maximum of 400 containers can be watered with the Dramm Dribble Rings from a 3/4 supply pipe. Minimum order 100 per size.

ITEM COLOR SIZE
DR4-12 - 12 in

Dribble Ring for 6 & 7 Containers



ITEM COLOR SIZE
DR4-24 - 24 in
DR4-36 - 36 in
DR4-48 - 48 in
DR6-12 - 12 in
DR6-24 - 24 in
DR6-36 - 36 in
DR6-48 - 48 in
DR85-12 - 12 in
DR85-24 - 24 in
DR85-36 - 36 in
DR85-48 - 48 in
DR10-12 - 12
DR10-24 - 24
DR10-36 - 36
DR10-48 - 48
DR13-12 - 12
DR13-24 - 24
DR13-36 - 36
DR13-48 - 48

Universal Hand Pick Tool


The Dramm Hand Pick Tool is used for the insertion of Dramm Brass Eyelets into poly tubbing for the use of Dramm Dribble Tubes and Rings. Place an eyelet onto the tip of the Handpik tool and push firmly into the black poly tubing. The Hand Pick Tool will pierce the poly tubing and insert the brass eyelet in one leak-free operation!

ITEM COLOR SIZE
HPT - -

Brass Eyelet



Brass eyelet. Used to install Dramm Dribble Tubes and Dribble Rings.

ITEM COLOR SIZE
DTMS-E - .060 or .045 ID

Brass Eyelet



Brass eyelet. Used to install Dramm Dribble Tubes and Dribble Rings.

ITEM COLOR SIZE
DTL-E - .075 ID

Poly Tubing -.045 ID X .100 OD



Small leader tube for Dramm Dribble Tubes.

ITEM COLOR SIZE
O45 Green 5,000 feet/ roll

Poly Tubing -.060 ID X .100 OD



Medium leader tube for Dramm Dribble Tubes.

ITEM COLOR SIZE
O6O Brown 5,000 feet/ roll

Poly Tubing - .075 ID X .125 OD



Large leader tube for Dramm Dribble Tubes.

ITEM COLOR SIZE
O75 Blue 5,000 feet/ roll

Poly Tubing - .130 ID X .192 OD



Dramm Stix leader tube.

ITEM COLOR SIZE
192 Black 2,500 feet/ roll

3/4 in NPT Dramm Solenoid Valve


Dramm's ultra-durable solenoids are designed to outlast the competition and shut-off rapidly. Perfect for misting systems, where an extra second or two is more water than needed, the SVB range of solenoids are fast acting.

ITEM COLOR SIZE
SVB075 - 3/4 in - 24VAC 1.2 W

1 in NPT Dramm Solenoid Valve



Dramm Solenoid Valve - 1 National Pipe Thread

ITEM COLOR SIZE
SVB100 - 1 in - 24VAC 1.2 W
SVB150 - 1.5 in - 24VAC 1.2 W
SVB200 - 2 in - 24VAC 1.2 W

Polyethylene Irrigation Line


Dramm PE tubing is available in 16mm and 25mm (3/4) in various lengths. Call for sizing and pricing.

ITEM COLOR SIZE
PE tubing - 16mm or 25mm

Valve Station



Dramm offers preassembled valve stations as well as multi line manifolds. Build with easy maintenance in mind, Dramm pre assembled PVC components make irrigation system installation easy. Talk to Dramm about designing your irrigation system today and include Dramm pre assembled system components.

ITEM COLOR SIZE
Valve Station - -

PolyRail 16mm Aluminum Extrusion


PolyRail aluminum extrusion tightly sleeves PE tubing keeping it rigid, without sags. PolyRail keeps nozzles straight and even, ensuring the best coverage for your irrigation system. Installs easily without glue.

ITEM COLOR SIZE
ALU16 - 12' section

PolyRail 25mm Aluminum Extrusion


25mm (3/4) diameter. For higher flow and more support. 25mm PolyRail may be used to hang baskets

ITEM COLOR SIZE
ALU25 - 12' section

PolyRail Connecting Band


Connecting band with set screws. 4 length. Connects two rail pieces together.

ITEM COLOR SIZE
ALU501CB - 4 inch

PolyRail Connecting Band


Connecting band with set screws. 14 length. Connects two rail pieces together.

ITEM COLOR SIZE
ALU50135 - 14 inch

PolyRail 90 deg Hanger 16mm


Hanger to position PE outlet at a 90_ angle

ITEM COLOR SIZE
ALU500PH - 16mm

PolyRail 90 deg Hanger 25mm


Hanger to position PE outlet at a 90_ angle

ITEM COLOR SIZE
ALU500-90 - 25mm

PolyRail Top Hanger


Hanger rides on Rail to position PE outlet towards the bottom of the Rail.

ITEM COLOR SIZE
ALU502H - Top

PolyRail Stop


Stop used at both ends of each irrigation run. Includes set screw.

ITEM COLOR SIZE
ALU541S - -

PolyRail Punch 25mm


Punch for centering 3mm hole in PE.

ITEM COLOR SIZE
ALU503A - 25mm

PolyRail Punch 16mm


Punch for centering 3mm hole in PE.

ITEM COLOR SIZE
ALU509A - 16mm

PolyRail Bench Riser Base


Base for PolyRail Bench Riser Support

ITEM COLOR SIZE
ALUSB - -

PolyRail Bench Riser Cap


Cap for top of PolyRail Bench Riser Support

ITEM COLOR SIZE
ALUSC - -

White JetRain Barbed


JetRain Nozzle Low Pressure with Clean Out Check Valve Barbed Inlet. For propagation mist. Alternate with Blue for best results.

ITEM COLOR SIZE
JRLPC-B-WH - .33 gpm

Blue JetRain Barbed


JetRain Nozzle Low Pressure with Clean Out Check Valve Barbed Inlet. For propagation mist. Alternate with White for best results.

ITEM COLOR SIZE
JRLPC-B-BL - .33 gpm

Red JetRain Barbed


JetRain Nozzle Low Pressure with Clean Out Check Valve Barbed Inlet. For mist and irrigation.

ITEM COLOR SIZE
JRLPC-B-RD - .66 gpm

Yellow JetRain Barbed


JetRain Nozzle Low Pressure with Clean Out Check Valve Barbed Inlet. For heavier irrigation.

ITEM COLOR SIZE
JRLPC-B-YL - 1 gpm

JetRain Barbed Nozzle



JetRain Nozzle Barbed with no Check Valve Barbed Inlet

ITEM COLOR SIZE
JR-B - -

White JetRain Threaded


JetRain Nozzle Low Pressure with Clean Out Check Valve Threaded Inlet. For propagation mist. Alternate with Blue for best results.

ITEM COLOR SIZE
JRLPC-T-WH - .33 gpm

Blue JetRain Threaded


JetRain Nozzle Low Pressure with Clean Out Check Valve Threaded Inlet. For propagation mist. Alternate with White for best results.

ITEM COLOR SIZE
JRLPC-T-BL - .33 gpm

Red JetRain Threaded


JetRain Nozzle Low Pressure with Clean Out Check Valve Threaded Inlet. For mist and irrigation.

ITEM COLOR SIZE
JRLPC-T-RD - .66 gpm

Yellow JetRain Threaded


JetRain Nozzle Low Pressure with Clean Out Check Valve Threaded Inlet. For heavier irrigation.

ITEM COLOR SIZE
JRLPC-T-YL - 1 gpm

JetRain Threaded Nozzle



JetRain Nozzle Threaded with no Check Valve Threaded Inlet

ITEM COLOR SIZE
JR-T - -

JetRain 180 deg Nozzle Complete Barbed



JetRain 180 deg Pattern Barbed - Choose a color

ITEM COLOR SIZE
JRLPC180-B-_ - -
JRLPC180-T-_ - -
JRC180-_ _ - -
JR180-_ _ - -

JetRain Replacement Pin (specify color)


Replacement pin are specific to each nozzle. Please specify color when ordering.

ITEM COLOR SIZE
JR-P-_ _ - -

JetRain Cleanout ADV Barbed LP


Check valve for JetRain nozzle with cleanout. 15-50 psi.

ITEM COLOR SIZE
JR-807L - -

JetRain Cleanout ADV Threaded LP


Check valve for JetRain nozzle with cleanout. 15-50 psi.

ITEM COLOR SIZE
JR-808L - -

JetRain Greenhouse Manual



Jet Rain installation and care manual.

ITEM COLOR SIZE
Manual - -
JR-539 - -
JR-566 - -
JR-528 - -

JetRain On/Off Valve


Add to a JetRain assembly to turn individual nozzles on and off.

ITEM COLOR SIZE
JRBV-750 - -

JetFog Barbed Nozzle


The JefFog nozzle offers a very fine spray (80 micron) between 50-70 psi. Available in a barbed or threaded inlet with single or multiple outlets. Flow per tip is 5.8 lph (1.5 gph).

ITEM COLOR SIZE
JFSB - -

JetFog Threaded Nozzle


The JefFog nozzle offers a very fine spray (80 micron) between 50-70 psi. Available in a barbed or threaded inlet with single or multiple outlets. Flow per tip is 5.8 lph (1.5 gph).

ITEM COLOR SIZE
JFST - -

JetFog 2 way Barbed


Two outlet nozzle with barbed inlet. Flow rate is 11.6 lph (3 gph).

ITEM COLOR SIZE
JFB2 - -

JetFog 4 way Barbed


Four outlet nozzle with barbed inlet. Flow rate is 23.2 lph (6 gph).

ITEM COLOR SIZE
JFSB4 - -

JetFog 5 way Barbed


Five outlet nozzle with barbed inlet. Flow rate is 29 lph (7.5 gph).

ITEM COLOR SIZE
JFSB5 - -

JetFog 4 way Threaded


Four outlet nozzle with threaded inlet. Flow rate is 23.2 lph (6 gph).

ITEM COLOR SIZE
JFST4 - -

JetFog 5 way Threaded


Five outlet nozzle with threaded inlet. Flow rate is 29 lph (7.5 gph).

ITEM COLOR SIZE
JFST5 - -

JetFog Greenhouse Manual



Installation and care manual for JetFog nozzles.

ITEM COLOR SIZE
Manual - -

Replacement Nozzle for JetFog


Replacement nozzle tip for JetFog nozzle. Press-fit connection.

ITEM COLOR SIZE
JF-525 - -

Blank Nozzle for JetFog


Blank nozzle tip to prevent spray from any JetFog outlet. Press-fit connection.

ITEM COLOR SIZE
JF-524 - -

2 way cross for JetFog


Two way cross for JetFog Nozzle. Press fit connection.

ITEM COLOR SIZE
JF-2CROSS - -

4 way cross for JetFog


Four way cross for JetFog Nozzle. Press fit connection.

ITEM COLOR SIZE
JF-4CROSS - -

Replacement ADV Diaphragm for JetFog


Replacement diaphragm for JetFog Anti Drip Device. Silicone. Use JF-WRENCH-C to access diaphragm and reseat new diaphragm.

ITEM COLOR SIZE
JF-560 - -

JetFOG Nozzle Service Kit



Includes JF-WRENCH & BLANK tool, 10 BLANK6, 5 JF-525, 3 JF-524, 5 JF-560

ITEM COLOR SIZE
JF-KIT - kit

JetFOG Wrench Tool w/ JetFOG Seat Tool


Combo set for disassembling and reassembling JetFOG nozzles easily.

ITEM COLOR SIZE
JF-WRENCH-C - -

ii ri Smart Controller w Coil


The ii ri Smart Controller is a a battery operated, Bluetooth Connected, irrigation/misting controller that can oprate one solenoid valve without wiring.

Create different programs on your smartphone and upload them to your ii ri easily to change scenarios. Great for quick installations, single propagation benches, outdoor mum fields and more.

ITEM COLOR SIZE
iiri3v - 3/4 in. valve

ii ri Smart Controller on 3/4 in. Solenoid



Ii ri Smart Controller including 3/4 solenoid valve.

ITEM COLOR SIZE
iiriSVB075 - 3/4 in. valve
iiriSVB100 - 1 in. valve

MistTime Misting Controller


The Dramm MistTime Controller is perfect for time or temperature based control of misting valves. With the ability to program each valve independently, the MistTime offers unmatched flexibility. Each valve is operated on a cycle. The timing is variable with the duration operating between 1 second and 60 minutes and the interval time operating between 1 minute and 12 hours. Each valve can be run continuously, between specific times, or even started when the temperature rises above a set point. With the ability to program each valve independently, the controller can operate as a time based mist controller, a pulse-irrigation controller and a mist cooling controller at the same time. In addition, the MistTime offers the option to convert the last valve output to a pump pre-start output. When configured in this manner, the operator is given an option to pre-start a pump prior to any valve operation. The pre-start time is variable. This ensures that the system is properly pressurized when the mist system is in operation. The MistTime is easy to program using a keypad to navigate the menu and enter amounts. For flexibility, the MistTime can be programmed in English, Spanish, French or Dutch. The MistTime operates on 120vAC or 220vAC and includes a 24vAC output. The unit is enclosed in a NEMA 4 rated PVC housing and is easy to wire and install.

ITEM COLOR SIZE
MT-10 - 10 Output

MistTime Manual in Spanish



The MistTime is programmable in English, Spanish, French and Dutch. This manual offers native language support.

ITEM COLOR SIZE
MT-10 Manual ESP - -
MT-10 Manual FRA - -
MT10-TP - -

ProLine Irrigation Controller - 4 Station (expandable)


The ProLine Irrigation Controller offers advanced control features such as multiple program operation, master valve, multiple start times per day, manual operation, and an option to add cellular connectivity to monitor and modify irrigation operation from your phone.

ITEM COLOR SIZE
PL1600-04 - 4 output

ProLine Quick Start Guide


Quick Start Guide for the ProLine Controller. Step-by-step instructions to program the basics.

ITEM COLOR SIZE
ProLineQS - Document

ProLine Installation Guide


Easy instructions showing how to install your ProLine Controller.

ITEM COLOR SIZE
ProLineIG - Document

ProLine Irrigation Controller - 8 Station (expandable)



ITEM COLOR SIZE
PL1600-08 - 8 output
PL1600-12 - 12 output
PL1600-12B - 12 output (base)
PL1600-16 - 16 output
PL1600-20 - 20 output
PL1600-24 - 24 output
PL-1600-M4 - 4 output module
PL-1600-M12 - 12 output module
PL-SLAC - -
PL-SLAC-50 - -
PL-420LS - -

RainPro Manual



The RainPro has been discontinued. The manual remains on line for previous customers.

ITEM COLOR SIZE
RPIC-Manual - -

RainPro 4 Output Expansion Module


The RainPro has been discontinued. However, we still have 4 output modules to upgrade existing units. This module fits into open slots in the RainPro 03, 07 and 11 version to add 4 outputs to increase the capacity of the unit.

ITEM COLOR SIZE
RPIC-M4 - 4 Outputs

2 lph Drip Assembly - 18 in.


ITEM COLOR SIZE
PCAS2L-18 - 18 in

2 lph Drip Assembly - 24 in.



ITEM COLOR SIZE
PCAS2L-24 - 24 in
PCAS2L-36 - 36 in
PCAS2L-48 - 48 in

2 lph (1/2 gph) Pressure Compensated Emitter Barbed - Black Insert


2 liter per hour emitter with barbed outlet for attaching to 0.191 tubing. Offering even flow rates at variable pressures, PCAS emitters provide even water from the first to the last dripper. Our LARGER emitter body allows for a wider labyrinth that prevents clogging by letting debris pass through the emitter.

ITEM COLOR SIZE
PCAS2L - 2 lph

4 lph (1 gph) Pressure Compensated Emitter PressFit - Green Insert


2 liter per hour emitter with barbed outlet for attaching to 0.191 tubing. Offering even flow rates at variable pressures, PCAS emitters provide even water from the first to the last dripper. Our LARGER emitter body allows for a wider labyrinth that prevents clogging by letting debris pass through the emitter.

ITEM COLOR SIZE
PCAS4L - 4 lph

4 lph (1 gph) Pressure Compensated Emitter Barbed - Green Insert


2 liter per hour emitter with barbed outlet for attaching to 0.191 tubing. Offering even flow rates at variable pressures, PCAS emitters provide even water from the first to the last dripper. Our LARGER emitter body allows for a wider labyrinth that prevents clogging by letting debris pass through the emitter.

ITEM COLOR SIZE
PCAS4L-B - 4 lph

8 lph (2 gph) Pressure Compensated Emiiter PressFit - Red Insert


2 liter per hour emitter with barbed outlet for attaching to 0.191 tubing. Offering even flow rates at variable pressures, PCAS emitters provide even water from the first to the last dripper. Our LARGER emitter body allows for a wider labyrinth that prevents clogging by letting debris pass through the emitter.

ITEM COLOR SIZE
PCAS8L - 8 lph

12 lph (3 gph) Pressure Compensated Emitter PressFit - Black Insert


2 liter per hour emitter with barbed outlet for attaching to 0.191 tubing. Offering even flow rates at variable pressures, PCAS emitters provide even water from the first to the last dripper. Our LARGER emitter body allows for a wider labyrinth that prevents clogging by letting debris pass through the emitter.

ITEM COLOR SIZE
PCAS12L - 12 lph

Barrel to barb Adaptor


Connect barrel outlet emitters to 192 tubing with this adaptor.

ITEM COLOR SIZE
MAN1 - 1 outlet 3mm barb

2 Way Manifold


Dramm 2 and 4 Way Manifolds are for use with the MB 4LPH and 8LPH emitters. The Manifolds allow multiple pots to be watered from one emitter.

ITEM COLOR SIZE
MAN2 - 2 outlet 3mm barb

4 Way Manifold


Dramm 2 and 4 Way Manifolds are for use with the MB 4LPH and 8LPH emitters. The Manifolds allow multiple pots to be watered from one emitter.

ITEM COLOR SIZE
MAN4 - 4 outlet 3mm barb

Slim Weight - Zinc Aluminum Alloy


ITEM COLOR SIZE
PCASW - 11 Gram

18 in. - 0.191 in. Tubing



ITEM COLOR SIZE
191-18 Black 18 in.
191-24 Black 24 in.
191-36 Black 35 in.
191-42 Black 42 in.
191-48 Black 48 in.

4 in. dia Pressure Compensated Dribble Ring


Pressure Compensated Rings offer even watering of trees and nursery stock. With a choice of 4 lph (1 gph), 8 lph (2 gph), or 12 lph (4 gph) emitters, each plant gets the same amount of water supplied by Dramm's Dribble Rings.

ITEM COLOR SIZE
PCR4-12 - 12 in. tube

4 in. dia Pressure Compensated Dribble Ring



ITEM COLOR SIZE
PCR4-24 - 24 in. tube
PCR4-36 - 36 in. tube
PCR4-48 - 48 in. tube
PCR6-12 - 12 in. tube
PCR6-24 - 24 in. tube
PCR6-36 - 36 in. tube
PCR6-48 - 48 in. tube
PCR85-12 - 12 in. tube
PCR85-24 - 24 in. tube
PCR85-36 - 36 in. tube
PCR85-48 - 48 in. tube
PCR10-12 - 12 in. tube
PCR10-24 - 24 in. tube
PCR10-36 - 36 in. tube
PCR10-48 - 48 in. tube
PCR13-12 - 12 in. tube
PCR13-24 - 24 in. tube
PCR13-36 - 36 in. tube
PCR13-48 - 48 in. tube

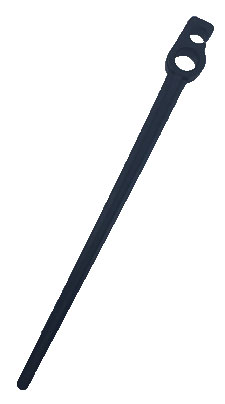

Anchor Stake for Rings


The S3ANCHOR holds dribble rings in the pot, keeping them optimally placed for best water distribution.

ITEM COLOR SIZE
S3ANCHOR - 6

T connector for Dramm PC Rings.


The T-Piece has two barbed, secure connections and one smooth connection to allow for the ring to be easily disconnected.

ITEM COLOR SIZE
T-PIECE - -

1/4 in Microvalve


Barbed Microvalve for drip irrigation. Allows individual pressure compensated drippers to be turned off.

ITEM COLOR SIZE
MTMV-25 - 1/4 in barbs

3mm Barbed Fitting


Barbed fitting

ITEM COLOR SIZE
BARB3 - 3mm

3mm Plug for mistakes


Plug for mistakes when using the 3mm barbed fitting.

ITEM COLOR SIZE
BLANK3 - 3mm

Multi-Tool for Irrigation


Multi-tool for irrigation installation. Cuts PE, punches holes with 3,4,5 mm blades. Inserts barbed components into PE.

ITEM COLOR SIZE
ML-TOOL - Multi

3mm Punch for 16mm or 1/2 Tubing


Easy-to-use 3mm Punch for 16mm or 1/2 Tubing

ITEM COLOR SIZE
PUNCH1650 - 3mm

3mm Replacement blade for PUNCH1650


Replaces standard blade when worn.

ITEM COLOR SIZE
PUNCH1650-B - 3mm

45 deg. Angle Stake 4 in.


Plain barbed stake

ITEM COLOR SIZE
ST-45 - 4 in.

45 deg. Angle Labyrinth Stake 4 in.


Labyrinth Stake

ITEM COLOR SIZE
LST4-45 - 4 in.

Easyloc Inline Valve


Easyloc Inline Valve 16mm x 16mm. Shuts off PE line. Insert as needed. Barb & Compression nut. Needs no additional clamp.

ITEM COLOR SIZE
ITVSL16 - 16mm x 16mm

Easyloc Inline Valve & Fitting


Easyloc Inline Valve 16mm x 3/4in. MPT. Connect PVC to PE. Barb & Compression nut. Needs no additional clamp.

ITEM COLOR SIZE
ITV075SL16 - 16mm x 3/4in

Easyloc Fitting


Easyloc Fitting 16mm x 3/4in. MPT. Connect PVC to PE. Barb & Compression nut. Needs no additional clamp.

ITEM COLOR SIZE
ITF075SL16 - 16mm x 3/4in

Easyloc Tee


Easyloc Tee 16mm. Barb & Compression nut. Needs no additional clamp.

ITEM COLOR SIZE
ITTSL16 - 16mm

Easyloc Elbow


Easyloc Elbow 16mm. Barb & Compression nut. Needs no additional clamp.

ITEM COLOR SIZE
ITESL16 - 16mm

Easyloc Coupling


Easyloc Coupling 16mm. Barb & Compression nut. Needs no additional clamp.

ITEM COLOR SIZE
ITCSL16 - 16mm

Figure 8 Clamp


Figure 8 clamp to close 16mm PE ends.

ITEM COLOR SIZE
600AP8 - 16mm

Floraplus 2 72 in



Floraplus 2 (1L/m2 - cap mat & PP ground cover) 72 x 100' Roll

ITEM COLOR SIZE
FP2-72X100 - 72 in
FP3-72X100 - 72 in
FP2-48X100 - 48 in
FP3-48X100 - 48 in
FP2-96X100 - 96 in

Vivaplus 2 72 in



Vivaplus 2 (3L/m2 - cap mat & PP ground cover)) 72 x 100' Roll

ITEM COLOR SIZE
VP2-72X100 - 72 in
VP3-72X100 - 72 in
VP2-48X100 - 48 in
VP3-48X100 - 48 in
VP2-96X100 - 96 in

Aquafol Filter Cloth 79in



Aquafol Filter Cloth - White 79 x 164' Roll

ITEM COLOR SIZE
AFW-79X164 - 79 in
AFW-48X100 - 48 in

S10 - 1/2MPT ADPT-GREEN PLATE-nozzle select


#10,11,12,13,14,15,16,17,18,20 - Green #1, Black#2, Gray#3

ITEM COLOR SIZE
N-12884-11XX - -

R10 Rotator - 1/2MPT ADPT-RED PLATE-nozzle select


#40, 45, 50, 55, 60 - Red #1 , White #2, Orange #7

ITEM COLOR SIZE
N-9913-11XX - -

R2000WF Rotator - 1/2MPT ADPT-BLUE PLATE-nozzle select


#10,11,12,13,14,15,16,18,20 - Blue #10, Purple #12, Green #14, Red #16, Yellow #18, Brown #20 Purple, Ivory

ITEM COLOR SIZE
N-9928-10XX - -

D10 - 1/2MPT ADPT-GRN PLATE-nozzle select



#10,11,12,13,14,15,16,17,18,20 - Standard flat Black plate

ITEM COLOR SIZE
N-12928-10XX - -
N-9914-13XX - -
N-12927-11XX - -
N-9929-10XX - -
N-13827-12XX - -

Road Guard- Orange (R2000WF, R2000LP)


ITEM COLOR SIZE
N-12213-001 - -

Abot/Riser Base 1.5


The Abot Riser base connects laterals to risers.

ITEM COLOR SIZE
A-050-001-607 - 1.5 in

Male End Fitting 1.5


Male PipeLoc fitting.

ITEM COLOR SIZE
A-050-001-616 - 1.5 in

Female End Fitting 1.5


Female PipeLoc fitting.

ITEM COLOR SIZE
A-050-001-517 - 1.5 in

Riser Pipe (Black) ED x20inch


20 inch riser section for PipeLoc. Threads into Riser Base and connects to other riser pipes to reach desired nozzle height.

ITEM COLOR SIZE
A-032-032-450 - -

Abot/Riser Base 2



ITEM COLOR SIZE
A-063-001-607 - 2 in
A-075-001-607 - 2.5 in
A-090-001-607 - 3 in
A-050-050-621 - 1.5 in
A-063-063-623 - 2 in
A-075-050-624 - 2.5 in/1.5 in
A-075-063-625 - 2.5 in/2 in
A-075-075-626 - 2.5 in
A-090-050-627 - 3 in/1.5in
A-090-063-628 - 3in/2in
A-090-075-629 - 3in/2.5in
A-090-090-630 - 3 in
A-050-050-642 - 1.5 in
A-063-063-644 - 2 in
A-075-050-645 - 2.5 in/1.5 in
A-075-063-646 - 2.5 in/2 in
A-075-075-647 - 2.5 in
A-090-050-648 - 3 in/1.5in
A-090-063-649 - 3 in/2 in
A-090-075-650 - 3 in/2.5 in
A-090-090-651 - 3in
A-063-050-665 - -
A-075-050-666 - -
A-075-063-667 - -
A-090-050-668 - -
A-090-063-669 - -
A-090-075-670 - -
A-050-000-608 - -
A-063-000-608 - -
A-075-000-608 - -
A-090-000-608 - -
A-050-000-509 - 1.5 in
A-063-000-509 - 2 in
A-075-000-509 - 2.5 in
A-090-000-509 - 3 in
A-063-001-616 - 2 in
A-075-001-616 - 2.5 in
A-090-001-616 - 3 in
A-063-001-517 - 2 in
A-075-001-517 - 2.5 in
A-090-001-517 - 3 in
A-050-000-605 - 1.5 in
A-063-000-605 - 2 in
A-075-000-605 - 2.5 in
A-030-000-605 - 3 in
A-050-000-506 - 1.5 in
A-063-000-506 - 2 in
A-075-000-506 - 2.5 in
A-030-000-506 - 3 in
A-032-025-001 - -
A-032-032-014 - -
A-050-000-612 - 1.5 in
A-063-000-612 - 2 in
A-075-000-612 - 2.5 in
A-090-000-612 - 3 in


Individual Nozzles and Components

Dramm Irrigation Products have been a staple in greenhouses throughout the world for decades. Our popular products like the Pin-Perfect Nozzle, the Nifty-Nozzle and the Dribble Tube are still available and work in a number of situations.

Each of these items is listed below.

For more on our newer systems, please visit their individual pages listed above.

Pin-Perfect Nozzle


The perfect overhead watering nozzle for foliage plants, bedding plants, geraniums and all 4 to 6 pot crops. Pin-Perfect Nozzles can be easily turned ÙÙoffÙ_ by pushing the pin down and ÙÙonÙ_ again by pulling the pin up. Each nozzle produces a 10 foot diameter spray pattern when your water pipeline is 5 feet above the crop.

Pin-Perfect Nozzles should be installed on the topside of the pipeline or on top of 1/2 PVC risers. For uniform coverage, Pin-Perfect Nozzles should be spaced so that their spray patterns overlap. With the pipeline at 5 feet over the crop your Pin-Perfect Nozzles will produce a 10 foot diameter spray pattern. Space each nozzle 5 feet apart so the spray pattern will overlap to the next nozzle. Multiple pipelines should be spaced 10 feet apart for complete coverage. To decrease the spray diameter of the Pin-Perfect to 7 feet, lower the water pipeline to 3 feet over the crop and space the nozzles at 3 1/2 foot intervals.

To compensate for pressure loss and ensures uniform water distribution, simply change the color coded nozzle to the nozzle with the next higher output rate. This changing of nozzles will compensate for pressure loss and produce approximately the same amount of output all the way down the pipeline. As a rule of thumb, we recommend changing color coded nozzles every (6th) sixth nozzle.

Before you begin an installation, we recommend that you install one pipeline based on the guidelines presented. After the first pipeline is installed, tested and adjusted, remaining lines can be set-up following the same specifications as the first.

Use Pin-Perfect Nozzles in combination with Dramm Run-Out Valves, No-Drip Risers and No-Drip Extension Check Valves to control water drip.

Pin-Perfect Nozzle Flow Rate in Gallons Per Minute
ITEM COLOR SIZE 15 PSI22 PSI29 PSI36 PSI
PPN-BR Brown 2.55 mm 0.61 0.74 0.85 0.95

Pin-Perfect Nozzle



ITEM COLOR SIZE 15 PSI22 PSI29 PSI36 PSI
PPN-GN Green 2.65 mm 0.69 0.82 0.95 1.08
PPN-GR Grey 2.75 mm 0.77 0.9 1.03 1.17
PPN-BL Blue 2.80 mm 0.79 0.95 1.11 1.27
PPN-RD Red 2.95 mm 0.87 1.03 1.21 1.4
PPN-OR Orange 3.05 mm 0.9 1.11 1.29 1.48
PPN-BK Black 3.25 mm 0.98 1.21 1.4 1.6

Pin-Perfect Nozzle Replacement Pin


Replacement pin for the Pin-Perfect Nozzle. The color of the pin designates the nozzle output rate. Replace pins with the same color as the original pin color. The diameter of the orifice in the black body of the Pin-Perfect Nozzle determines the flow rate for that nozzle. All pins have the same diameter and do not affect flow rate. Specify two letter color code when ordering.

ITEM COLOR SIZE
PPNP-360 - -

180_ Pin-Perfect Nozzle Pin


The Dramm 180_ Pin replaces any color pin on the Pin Perfect Nozzles. This allows for a 180_ pattern without changing nozzles. As the flow rate for the Pin Perfect Nozzle is controlled by the diameter of the nozzle body. The 180_ Pin offers a 180_ pattern without changing the flow. Color: black.

ITEM COLOR SIZE
PPNP-180 - -

360_ Nifty Nozzles


Dramm 360_ Nifty Nozzles offer an economical solution for simple ÙÙoverheadÙ_ or ÙÙon the benchÙ_ watering systems. These ÙÙniftyÙ_ nozzles produce a 10 foot diameter spray pattern when your water pipeline is 5 feet above the crop. Nifty Nozzles can be installed on the topside of the pipeline, on bottom side of the pipeline or on top of 1/2 PVC risers. Bottom side installations require No-Drip Check Valves to prevent drip.

To provide uniform coverage the nozzles should be spaced so that their spray patterns overlap. With the pipeline 5 feet over your crop, Nifty Nozzles will produce a 10 foot diameter spray pattern. Space each nozzle 5 feet apart so the spray pattern will overlap to the next nozzle. Multiple pipelines should be spaced 10 feet apart for complete coverage. To decrease the spray diameter of the Nifty Nozzle to 7 feet, lower the water pipeline to 3 feet over the crop and space the nozzles at 3 1/2 foot intervals. Multiple pipelines should be spaced 7 feet apart for complete coverage.

For ÙÙon-the-benchÙ_ watering (for cut flower crops), we recommend using lower flow rate Brown, Green or Grey Nifty Nozzles spaced 3 feet apart, one pipeline down the center of each bench or bed.

Before you begin an installation, we recommend that you install one pipeline based on the guidelines presented. After the first pipeline is installed, tested and adjusted, remaining lines can be set-up following the same specifications as the first.

Use 360_ Nifty Nozzles in combination with Dramm Run-Out Valves, No-Drip Risers and No-Drip Extension Check Valves to control water drip.

Nifty Nozzle Flow Rate in Gallons Per Minute
ITEM COLOR SIZE 15 PSI22 PSI29 PSI36 PSI
360NN-BR Brown 1.75 mm 0.29 0.35 0.41 0.46

360_ Nifty Nozzles



ITEM COLOR SIZE 15 PSI22 PSI29 PSI36 PSI
360NN-GN Green 2.00 mm 0.4 0.49 0.57 0.63
360NN-GR Grey 2.25 mm 0.51 0.62 0.72 0.8
360NN-BL Blue 2.50 mm 0.63 0.77 0.89 0.99
360NN-RD Red 2.75 mm 0.76 0.93 1.07 1.2
360NN-OR Orange 3.00 mm 0.9 1.1 1.28 1.43

Assembly Insert


An Assembly Insert is a threaded gasket that provides a quick installation and leak-free seal for Dramm Irrigation Nozzles. The interior female thread is 3/8 Witworth_ the same thread specification used on the Pin-Perfect, Nifty, Misty Mist and Drop style nozzles.

To Install, use a 7/16 drill bit to drill holes into schedule 40 PVC pipe, aluminum pipe or galvanized pipe. Caution: Do not use schedule 80 PVC. The Assembly Insert will not be able to create an effective seal due to the wall thickness of the schedule 80 PVC pipe.

Install the Assembly Insert into the hole and then screw in the nozzle. The width of the nozzle expands the Assembly Insert as it is screwed into place_ creating a leak-free seal without having to drill and tap every hole. Pipes should be clamped and drilled using a drill press or alignment jig to ensure perfectly round holes and straight alignment. Recommended for use at operating pressures up to 50 PSI.

ITEM COLOR SIZE
AI - -

Misty Mist Nozzle


Dramm 360_ Misty Mist Nozzles are for overhead mist propagation, irrigating plugs or raising humidity levels. Misty Mist Nozzles produce a 6 foot diameter spray pattern when your water pipeline is 5 feet above the crop.

Misty Mist Nozzles can be installed on the topside of the pipeline, on bottom side of the pipeline or on top of 1/2 PVC risers. Bottom side installations require No-Drip Check Valves to prevent drip.

To provide uniform coverage in overhead mist propagation or plug irrigation, the nozzles should be spaced so that their spray patterns overlap. With the pipeline 5 feet over your crop, Misty Mist Nozzles will produce a 6 foot diameter spray pattern. Space each nozzle 3 feet apart so the spray pattern will overlap to the next nozzle. Multiple pipelines should be spaced 6 feet apart for complete coverage. To decrease the spray diameter of the Misty Mist to 5 feet, lower the water pipeline to 3 feet over the crop and space the nozzles at 2 1/2 foot intervals. Multiple pipelines should be spaced 5 feet apart for complete coverage.

For raising humidity levels or mist cooling, use Blue/White Misty Mist Nozzles. It is recommended that you automate the system using short ÙÙonÙ_ cycle times due the relatively high output rate of the nozzle. The pipeline should be suspended as high as possible in the middle of each bay without interfering with the spray pattern. Space nozzles 6 feet apart. There is no need to worry about overlapping spray patterns since the goal is to evaporate water into the air versus allowing the water to drop to the soil.

Before you begin an installation, we recommend that you install one pipeline based on the guidelines presented. After the first pipeline is installed, tested and adjusted, remaining lines can be set-up following the same specifications as the first.

Use 360_ Misty Mist Nozzles in combination with Dramm Run-Out Valves, No-Drip Risers and No-Drip Extension Check Valves to control water drip.

Misty Mist Nozzle Flow Rate in Gallons Per Minute
ITEM COLOR SIZE 36 PSI73 PSI
MM-BW Blue / White 1.00 mm 0.17 0.22

Misty Mist Nozzle



ITEM COLOR SIZE 36 PSI73 PSI
MM-RW Red / White 1.25 mm 0.27 0.35
MM-KW Black / White 1.50 mm 0.39 0.5

High Pressure Misty Mist Nozzle


The High Pressure Misty Mist delivers an ultra fine spray_ ideal for mist cooling and raising humidity levels. These nozzles create a 10 foot diameter spray pattern.

High Pressure Misty Mist Nozzles should only be installed on the topside of the pipeline. Bottom side installations are not recommended due to the high pressures involved.

Space nozzles 10 feet apart with the pipeline suspended as high as possible in the middle of each bay_ without interfering with the spray pattern of the nozzle. There is no need to worry about overlapping spray patterns since the goal is to evaporate water into the air versus allowing the water to drop to the soil.

Please note that high pressure pumps and filtration equipment are required for these nozzles to work properly. High Pressure Misty Mist Nozzles can not be installed using Assembly Inserts. Threads must be tapped directly into the water pipeline_ use the drill & tap installation method explained at the end of this section.

Before you begin an installation, we recommend that you install one pipeline based on the guidelines presented. After the first pipeline is installed, tested and adjusted, remaining lines can be set-up following the same specifications as the first.

Use High Pressure 360_ Misty Mist Nozzles in combination with Dramm Run-Out Valves to control water drip.

High Pressure Misty Mist Nozzle Flow Rate in Gallons Per Minute
ITEM COLOR SIZE 73 PSI145 PSI290 PSI435 PSI
HP-GW Grey / White 0.75 mm 0.12 0.19 0.24 0.27

Drop Inversion Nozzle


Due to a special spinning mechanism which increases the spray diameter of the Drop Inversion Nozzle_ it is perfect for 24 foot wide quonset/ tunnel houses. It is used on overhead watering systems that require a larger droplet size or an extended coverage area from each nozzle. Drop Inversion Nozzles produce a 360_ 24 foot diameter spray pattern and must be installed on the bottom side of the pipeline with No-Drip Extension Check Valves.

To provide uniform coverage the nozzles should be spaced so that their spray patterns overlap. With the pipeline 5 feet over your crop, Drop Inversion Nozzles produce a 24 foot diameter spray pattern. Space each nozzle 12 feet apart so the spray pattern will overlap to the next nozzle. Multiple pipelines should be spaced 24 feet apart for complete coverage. To decrease the spray diameter, lower the water pipeline until the desired spray diameter is achieved.

Before you begin an installation, we recommend that you install one pipeline based on the guidelines presented. After the first pipeline is installed, tested and adjusted, remaining lines can be set-up following the same specifications as the first.

Use Drop Inversion Nozzles in combination with Dramm Run-Out Valves and No-Drip Extension Check Valves to control water drip.

Drop Inversion Nozzle Flow Rate in Gallons Per Minute
ITEM COLOR SIZE 22 PSI29 PSI36 PSI
DDI-GG Grey / Grey 2.25 mm 0.62 0.71 0.8

Drop Upright Nozzle


The Drop Upright Nozzle has a unique spinning mechanism which increases the spray diameter of this nozzle to 30 feet when your water pipeline is 5 feet above the crop. It is used on overhead watering systems that require a larger droplet size or an extended coverage area from each nozzle. Drop Upright Nozzles produce a 360_ 36 foot diameter spray pattern and must be installed on the topside of the pipeline or on top of 1/2 PVC risers.

To provide uniform coverage the nozzles should be spaced so that their spray patterns overlap. With the pipeline 5 feet over your crop, Drop Upright Nozzles produce a 30 foot diameter spray pattern. Space each nozzle 15 feet apart so the spray pattern will overlap to the next nozzle. Multiple pipelines should be spaced 30 feet apart for complete coverage. To decrease the spray diameter, lower the water pipeline until the desired spray diameter is achieved.

Before you begin an installation, we recommend that you install one pipeline based on the guidelines presented. After the first pipeline is installed, tested and adjusted, remaining lines can be set-up following the same specifications as the first.

Use Drop Upright Nozzles in combination with Dramm Run-Out Valves, No-Drip Risers and No-Drip Extension Check Valves to control water drip.

Drop Upright Nozzle Flow Rate in Gallons Per Minute
ITEM COLOR SIZE 22 PSI29 PSI36 PSI
DDU-GB Grey / Black 2.25 mm 0.62 0.71 0.8

T-Drop Nozzle


The T-Drop Nozzle was created for long narrow installations in which an elliptical spray pattern is desired. T-Drop Nozzles can be installed on the topside of the pipeline, on bottom side of the pipeline or on top of 1/2 PVC risers. Bottom side installations require No-Drip Check Valves to prevent drip.

To provide uniform coverage the nozzles should be spaced so that their spray patterns overlap. With the pipeline 5 feet over your crop and nozzles installed on the topside of your pipeline, T-Drop Nozzles will produce a 10 foot by 5 foot elliptical spray pattern. Space each nozzle 5 feet apart so the spray pattern will overlap to the next nozzle. Multiple pipelines should be spaced 5 feet apart for complete coverage. To increase the spray diameter of the T-Drop to 12 feet by 6 feet, install the nozzles on the bottom side of the pipeline and space the nozzles at 6 foot intervals. Multiple pipelines should be spaced 6 feet apart for complete coverage.

Before you begin an installation, we recommend that you install one pipeline based on the guidelines presented. After the first pipeline is installed, tested and adjusted, remaining lines can be set-up following the same specifications as the first.

Use T-Drop Nozzles in combination with Dramm Run-Out Valves, No-Drip Risers and No-Drip Extension Check Valves to control water drip.

T-Drop Nozzle Flow Rate in Gallons Per Minute
ITEM COLOR SIZE 15 PSI22 PSI29 PSI36 PSI
TDN Brown / Red 1.75 mm 0.29 0.35 0.41 0.46

Nozzle Plug


Oops! Did you drill one too many holes? Use the Dramm Nozzle Plug to cap off unwanted holes without replacing entire pipelines. Install as you would any other Dramm Nozzle or unscrew the unwanted Pin-Perfect, Nifty or Misty Mist Nozzle and simply replace it with the Nozzle Plug. Order a few extra_ we won't tell. Item Number: PLUG

ITEM COLOR SIZE
PLUG White Universal

36 Pin-Perfect Hanging Nozzle Assembly


The Dramm Hanging Nozzle system combines the superior flow rates and water patterns of Dramm nozzles with the flexibility of a below basket hanging irrigation system. Designed for misting or irrigation of crops on benches or on the ground, the Hanging Nozzle system uses the familiar Dramm nozzles with our No Drip Extension Check Valve and a leader tube.

Hanging nozzle systems offer solutions to the traditional problems of rigid pipe mounted irrigation systems. Hanging nozzle systems use a check valve and hang below the lateral which prevents dripping from the nozzle or the ÙÙshadowÙ_ dripping from the lateral. Dramm Hanging Nozzle Assemblies offer even watering. Gravity ensures that the nozzles are plumb preventing pattern distortion.

The entire assembly includes a leader tube with a barb fitting. The system uses flexible polyethylene tubing instead of PVC for ease of use and flexibility. A variety of leader tube lengths and nozzle choices are available. For flow rates see the specific nozzles.

To install a Dramm Pin-Perfect Hanging Nozzle System. Space the nozzle assemblies at 3_Ù spacings . Choose a leader tube length that places the nozzles below the hanging baskets or at a height of at least 3_Ù above the crop. Choose a Pin-Perfect Nozzle to suit your needs taking into account the flow rate of each nozzle and the flow rate of the lateral.

ITEM COLOR SIZE
HNP-__-36 - 36 inch

48 Pin-Perfect Hanging Nozzle Assembly



ITEM COLOR SIZE
HNP-__-48 - 48 inch
HNP-__-60 - 60 inch

180_ Nylon Nozzle



180_ spray pattern. Push into flexible 1/2 black poly tubing for perimeter watering. Use in conjunction with 90_ Nylon Nozzle.

ITEM COLOR SIZE
180NY-RD Red -

90_ Nylon Nozzle



90_ spray pattern. Push into flexible 1/2 black poly tubing for perimeter watering. Use in conjunction with 180_ Nylon Nozzle.

ITEM COLOR SIZE
90NY-GR Grey -

No-Drip Riser


No-Drip Risers elevate Dramm Irrigation Nozzles 2 1/4 above the PVC pipeline. When pipeline water flow is shut-off, excess water falls back into the pipeline due to the height of the No-Drip Riser. This ÙÙfall backÙ_ helps control drip from nozzles overhead. No-Drip Risers can also be used to elevate Dramm Irrigation Nozzles above the soil line when pipes are buried for landscape purposes.

ITEM COLOR SIZE
NDR - -

No-Drip Extension with Check Valve


No-Drip Risers elevate Dramm Irrigation Nozzles 2 1/4 above the PVC pipeline. When pipeline water flow is shut-off, excess water falls back into the pipeline due to the height of the No-Drip Riser. This ÙÙfall backÙ_ helps control drip from nozzles overhead. No-Drip Risers can also be used to elevate Dramm Irrigation Nozzles above the soil line when pipes are buried for landscape purposes.

ITEM COLOR SIZE
NDECV - -

Run-Out Valve


Run-Out Valves are designed to be installed at the end of 1-inch or 3/4-inch PVC pipelines. When the water is turned off, the Run-Out Valve will open and allow water to run out of the line_ eliminating drip from all overhead nozzles. Run-Out Valves require at least 15 PSI to work properly.

Use PVC cement and a 1 to 3/4 PVC reducer bushing to connect Run-Out Valves to 3/4-inch PVC pipelines. Follow the PVC cement directions regarding pipe preparation and drying times.

ITEM COLOR SIZE
ROV - -

Threaded Pipe Nipple


The Threaded Pipe Nipple is used to attach Dramm Irrigation Nozzles directly to 1/2 PVC pipe risers. To install, simply screw the Threaded Pipe Nipple onto the threaded 1/2 PVC pipe riser. This method is ideal when you want to eliminate overhead lines or when overhead lines are impossible. 1/2 NPT X 3/8 WW . Use with 1/2 threaded PVC risers.

ITEM COLOR SIZE
PN-2010 - -

Slip Fit Pipe Nipple


The Slip Fit Pipe Nipple is used to attach Dramm Irrigation Nozzles directly to straight (unthreaded) 1/2 PVC pipe risers. To install, use PVC cement to attach the Slip Fit Pipe Nipple onto PVC pipe risers. Follow the PVC cement directions regarding pipe preparation and drying times. This method is ideal when you want to eliminate overhead lines or when overhead lines are impossible. 1/2 NPT X 3/8 WW . Use with 1/2 straight PVC risers.

ITEM COLOR SIZE
PN-2020 - -

Drill Tap 3/8 Whitworth Thread



Creates a 3/8 Whitworth thread in PVC for Pin-Perfect, Nifty or Misty Mist Nozzles.

ITEM COLOR SIZE
DT-N - -

3/4 Kwik Klamp


The Kwik Klamp is a bracket with a hinged clip that can open and close. This handy device locks shut when closed, but can be opened to remove or replace pipelines. The Kwik Klamp makes pipe installation fast and easy. Made in the Netherlands from chemical resistant polypropylene. Available for 3/4 and 1 diameter pipes. Metric and additional inch sizes are available upon special order. Use with the Kwik Spacer.

ITEM COLOR SIZE
KK-75 - 3/4 in

1 Kwik Klamp



ITEM COLOR SIZE
KK-100 - 1 in
KK-125 - 1.25 in
KK-150 - 1.5 in
KK-200 - 2 in

3/4 Kwik Spacer


The Kwik Spacer slides into the Kwik Klamp and is used to create additional space between the pipe and wall. Multiple Kwik Spacers can be combined to create varying lengths in 3/4 increments. Made in the Netherlands from chemical resistant polypropylene. Available for 3/4 and 1 Kwik Klamps. Metric and additional inch sizes are available upon special order.

ITEM COLOR SIZE
KS-75 - 3/4 in

1 Kwik Spacer



ITEM COLOR SIZE
KS-100 - 1 in
KS-125 - 1.25 in
KS-150 - 1.5 in
KS-200 - 2 in

On Dribble Tube


Dramm On Only Dribble Tubes have permanently attached always ON weight emitters. All On Dribble Tubes are permanently assembled. Different sizes and different lengths can be combined for price breaks.

There are three types of Dribble Tubes available: DTS with a .045 inside diameter green tube, DTM with a .060 inside diameter brown tube- and DTL with a .075 inside diameter blue tube. All 3 types are available in lengths from 12 TO 42 long. Use of Dribble Tubes allows individual pot watering for a total bench. Dramm Dribble Tubes should be used on 5, 6, or 7 pot sizes.

ITEM COLOR SIZE
DTS-12 Green Tubing 12 in

On Dribble Tube



ITEM COLOR SIZE
DTS-18 Green Tubing 18 in
DTS-24 Green Tubing 24 in
DTS-30 Green Tubing 30 in
DTS-36 Green Tubing 36 in
DTS-42 Green Tubing 42 in
DTS-48 Green Tubing 48 in
DTS-60 Green Tubing 60 in
DTM-12 Brown Tubing 12 in
DTM-18 Brown Tubing 18 in
DTM-24 Brown Tubing 24 in
DTM-30 Brown Tubing 30 in
DTM-36 Brown Tubing 36 in
DTM-42 Brown Tubing 42 in
DTM-48 Brown Tubing 48 in
DTM-60 Brown Tubing 60 in
DTL-12 Blue Tubing 12 in
DTL-18 Blue Tubing 18 in
DTL-24 Blue Tubing 24 in
DTL-30 Blue Tubing 30 in
DTL-36 Blue Tubing 36 in
DTL-42 Blue Tubing 42 in
DTL-48 Blue Tubing 48 in
DTL-60 Blue Tubing 60 in

Dramm Stix


Dramm StixÙ_ are designed to be used when it is impossible to run overhead water lines but the grower wants to water or mist from overhead. Very useful on moveable benching! Dramm Stix are available in 5 different heights from 10 to 36 and include the poly tubing (-which is 30 longer than the stick-), Pin Perfect nozzles, and the Dramm StixÙ©. The orange base Dramm StixsÙ© allow you to change from water nozzles to mist nozzles.

Dramm StixÙ© have a 3/8 WW thread which accommodates the Pin Perfect, Nifty, Misty Mist, and 180_ Nifty Nozzles. Dramm stix come standard with green Pin Perfect Nozzles unless specific type and color-coded nozzle are requested. Nifty Nozzles spray a 7 ft. diameter circle- while Misty Mist Nozzles cover a 4.5 ft. diameter circle. Both will completely water 100 ft. of bench or bed in about 5 minutes. Water supply tubes are inserted at 42 inch intervals in 3/4 or 1 black polyethylene pipe. Benches up to 70ft. long- use 3/4 pipe, over 70 ft. long- use 1 pipe, over 120 ft. long- use 1 pipe with supply in middle.

ITEM COLOR SIZE
SS-10 - 10 in

Dramm Stix



ITEM COLOR SIZE
SS-16 - 16 in
SS-24 - 24 in
SS-30 - 30 in
SS-36 - 36 in

Dribble Ring for 6 & 7 Containers


Dramm Dribble Rings are designed for individual pot watering of larger size containers. The ring encircles the plant and water is emitted in 5 areas through 10 holes to ensure uniform watering in larger pot sizes. Dribble Rings come in 5 sizes with different length lead tubes: They are recommended for all plants in 6 & 7 containers, 8 - 10 containers, 13 containers, 16 containers, and the largest for use in 18 - 20 containers. Dramm Dribble Rings provide complete, uniform watering for large pots, B&B stock, tropical plantings and orchids.

Dribble Rings are fed with a .060 ID Tube. A maximum of 400 containers can be watered with the Dramm Dribble Rings from a 3/4 supply pipe. Minimum order 100 per size.

ITEM COLOR SIZE
DR4-12 - 12 in

Dribble Ring for 6 & 7 Containers



ITEM COLOR SIZE
DR4-24 - 24 in
DR4-36 - 36 in
DR4-48 - 48 in
DR6-12 - 12 in
DR6-24 - 24 in
DR6-36 - 36 in
DR6-48 - 48 in
DR85-12 - 12 in
DR85-24 - 24 in
DR85-36 - 36 in
DR85-48 - 48 in
DR10-12 - 12
DR10-24 - 24
DR10-36 - 36
DR10-48 - 48
DR13-12 - 12
DR13-24 - 24
DR13-36 - 36
DR13-48 - 48

Universal Hand Pick Tool


The Dramm Hand Pick Tool is used for the insertion of Dramm Brass Eyelets into poly tubbing for the use of Dramm Dribble Tubes and Rings. Place an eyelet onto the tip of the Handpik tool and push firmly into the black poly tubing. The Hand Pick Tool will pierce the poly tubing and insert the brass eyelet in one leak-free operation!

ITEM COLOR SIZE
HPT - -

Brass Eyelet



Brass eyelet. Used to install Dramm Dribble Tubes and Dribble Rings.

ITEM COLOR SIZE
DTMS-E - .060 or .045 ID

Brass Eyelet



Brass eyelet. Used to install Dramm Dribble Tubes and Dribble Rings.

ITEM COLOR SIZE
DTL-E - .075 ID

Poly Tubing -.045 ID X .100 OD



Small leader tube for Dramm Dribble Tubes.

ITEM COLOR SIZE
O45 Green 5,000 feet/ roll

Poly Tubing -.060 ID X .100 OD



Medium leader tube for Dramm Dribble Tubes.

ITEM COLOR SIZE
O6O Brown 5,000 feet/ roll

Poly Tubing - .075 ID X .125 OD



Large leader tube for Dramm Dribble Tubes.

ITEM COLOR SIZE
O75 Blue 5,000 feet/ roll

Poly Tubing - .130 ID X .192 OD



Dramm Stix leader tube.

ITEM COLOR SIZE
192 Black 2,500 feet/ roll

3/4 in NPT Dramm Solenoid Valve


Dramm's ultra-durable solenoids are designed to outlast the competition and shut-off rapidly. Perfect for misting systems, where an extra second or two is more water than needed, the SVB range of solenoids are fast acting.

ITEM COLOR SIZE
SVB075 - 3/4 in - 24VAC 1.2 W

1 in NPT Dramm Solenoid Valve



Dramm Solenoid Valve - 1 National Pipe Thread

ITEM COLOR SIZE
SVB100 - 1 in - 24VAC 1.2 W
SVB150 - 1.5 in - 24VAC 1.2 W
SVB200 - 2 in - 24VAC 1.2 W

Polyethylene Irrigation Line


Dramm PE tubing is available in 16mm and 25mm (3/4) in various lengths. Call for sizing and pricing.

ITEM COLOR SIZE
PE tubing - 16mm or 25mm

Valve Station



Dramm offers preassembled valve stations as well as multi line manifolds. Build with easy maintenance in mind, Dramm pre assembled PVC components make irrigation system installation easy. Talk to Dramm about designing your irrigation system today and include Dramm pre assembled system components.

ITEM COLOR SIZE
Valve Station - -

PolyRail 16mm Aluminum Extrusion


PolyRail aluminum extrusion tightly sleeves PE tubing keeping it rigid, without sags. PolyRail keeps nozzles straight and even, ensuring the best coverage for your irrigation system. Installs easily without glue.

ITEM COLOR SIZE
ALU16 - 12' section

PolyRail 25mm Aluminum Extrusion


25mm (3/4) diameter. For higher flow and more support. 25mm PolyRail may be used to hang baskets

ITEM COLOR SIZE
ALU25 - 12' section

PolyRail Connecting Band


Connecting band with set screws. 4 length. Connects two rail pieces together.

ITEM COLOR SIZE
ALU501CB - 4 inch

PolyRail Connecting Band


Connecting band with set screws. 14 length. Connects two rail pieces together.

ITEM COLOR SIZE
ALU50135 - 14 inch

PolyRail 90 deg Hanger 16mm


Hanger to position PE outlet at a 90_ angle

ITEM COLOR SIZE
ALU500PH - 16mm

PolyRail 90 deg Hanger 25mm


Hanger to position PE outlet at a 90_ angle

ITEM COLOR SIZE
ALU500-90 - 25mm

PolyRail Top Hanger


Hanger rides on Rail to position PE outlet towards the bottom of the Rail.

ITEM COLOR SIZE
ALU502H - Top

PolyRail Stop


Stop used at both ends of each irrigation run. Includes set screw.

ITEM COLOR SIZE
ALU541S - -

PolyRail Punch 25mm


Punch for centering 3mm hole in PE.

ITEM COLOR SIZE
ALU503A - 25mm

PolyRail Punch 16mm


Punch for centering 3mm hole in PE.

ITEM COLOR SIZE
ALU509A - 16mm

PolyRail Bench Riser Base


Base for PolyRail Bench Riser Support

ITEM COLOR SIZE
ALUSB - -

PolyRail Bench Riser Cap


Cap for top of PolyRail Bench Riser Support

ITEM COLOR SIZE
ALUSC - -

White JetRain Barbed


JetRain Nozzle Low Pressure with Clean Out Check Valve Barbed Inlet. For propagation mist. Alternate with Blue for best results.

ITEM COLOR SIZE
JRLPC-B-WH - .33 gpm

Blue JetRain Barbed


JetRain Nozzle Low Pressure with Clean Out Check Valve Barbed Inlet. For propagation mist. Alternate with White for best results.

ITEM COLOR SIZE
JRLPC-B-BL - .33 gpm

Red JetRain Barbed


JetRain Nozzle Low Pressure with Clean Out Check Valve Barbed Inlet. For mist and irrigation.

ITEM COLOR SIZE
JRLPC-B-RD - .66 gpm

Yellow JetRain Barbed


JetRain Nozzle Low Pressure with Clean Out Check Valve Barbed Inlet. For heavier irrigation.

ITEM COLOR SIZE
JRLPC-B-YL - 1 gpm

JetRain Barbed Nozzle



JetRain Nozzle Barbed with no Check Valve Barbed Inlet

ITEM COLOR SIZE
JR-B - -

White JetRain Threaded


JetRain Nozzle Low Pressure with Clean Out Check Valve Threaded Inlet. For propagation mist. Alternate with Blue for best results.

ITEM COLOR SIZE
JRLPC-T-WH - .33 gpm

Blue JetRain Threaded


JetRain Nozzle Low Pressure with Clean Out Check Valve Threaded Inlet. For propagation mist. Alternate with White for best results.

ITEM COLOR SIZE
JRLPC-T-BL - .33 gpm

Red JetRain Threaded


JetRain Nozzle Low Pressure with Clean Out Check Valve Threaded Inlet. For mist and irrigation.

ITEM COLOR SIZE
JRLPC-T-RD - .66 gpm

Yellow JetRain Threaded


JetRain Nozzle Low Pressure with Clean Out Check Valve Threaded Inlet. For heavier irrigation.

ITEM COLOR SIZE
JRLPC-T-YL - 1 gpm

JetRain Threaded Nozzle



JetRain Nozzle Threaded with no Check Valve Threaded Inlet

ITEM COLOR SIZE
JR-T - -

JetRain 180 deg Nozzle Complete Barbed



JetRain 180 deg Pattern Barbed - Choose a color

ITEM COLOR SIZE
JRLPC180-B-_ - -
JRLPC180-T-_ - -
JRC180-_ _ - -
JR180-_ _ - -

JetRain Replacement Pin (specify color)


Replacement pin are specific to each nozzle. Please specify color when ordering.

ITEM COLOR SIZE
JR-P-_ _ - -

JetRain Cleanout ADV Barbed LP


Check valve for JetRain nozzle with cleanout. 15-50 psi.

ITEM COLOR SIZE
JR-807L - -

JetRain Cleanout ADV Threaded LP


Check valve for JetRain nozzle with cleanout. 15-50 psi.

ITEM COLOR SIZE
JR-808L - -

JetRain Greenhouse Manual



Jet Rain installation and care manual.

ITEM COLOR SIZE
Manual - -
JR-539 - -
JR-566 - -
JR-528 - -

JetRain On/Off Valve


Add to a JetRain assembly to turn individual nozzles on and off.

ITEM COLOR SIZE
JRBV-750 - -

JetFog Barbed Nozzle


The JefFog nozzle offers a very fine spray (80 micron) between 50-70 psi. Available in a barbed or threaded inlet with single or multiple outlets. Flow per tip is 5.8 lph (1.5 gph).

ITEM COLOR SIZE
JFSB - -

JetFog Threaded Nozzle


The JefFog nozzle offers a very fine spray (80 micron) between 50-70 psi. Available in a barbed or threaded inlet with single or multiple outlets. Flow per tip is 5.8 lph (1.5 gph).

ITEM COLOR SIZE
JFST - -

JetFog 2 way Barbed


Two outlet nozzle with barbed inlet. Flow rate is 11.6 lph (3 gph).

ITEM COLOR SIZE
JFB2 - -

JetFog 4 way Barbed


Four outlet nozzle with barbed inlet. Flow rate is 23.2 lph (6 gph).

ITEM COLOR SIZE
JFSB4 - -

JetFog 5 way Barbed


Five outlet nozzle with barbed inlet. Flow rate is 29 lph (7.5 gph).

ITEM COLOR SIZE
JFSB5 - -

JetFog 4 way Threaded


Four outlet nozzle with threaded inlet. Flow rate is 23.2 lph (6 gph).

ITEM COLOR SIZE
JFST4 - -

JetFog 5 way Threaded


Five outlet nozzle with threaded inlet. Flow rate is 29 lph (7.5 gph).

ITEM COLOR SIZE
JFST5 - -

JetFog Greenhouse Manual



Installation and care manual for JetFog nozzles.

ITEM COLOR SIZE
Manual - -

Replacement Nozzle for JetFog


Replacement nozzle tip for JetFog nozzle. Press-fit connection.

ITEM COLOR SIZE
JF-525 - -

Blank Nozzle for JetFog


Blank nozzle tip to prevent spray from any JetFog outlet. Press-fit connection.

ITEM COLOR SIZE
JF-524 - -

2 way cross for JetFog


Two way cross for JetFog Nozzle. Press fit connection.

ITEM COLOR SIZE
JF-2CROSS - -

4 way cross for JetFog


Four way cross for JetFog Nozzle. Press fit connection.

ITEM COLOR SIZE
JF-4CROSS - -

Replacement ADV Diaphragm for JetFog


Replacement diaphragm for JetFog Anti Drip Device. Silicone. Use JF-WRENCH-C to access diaphragm and reseat new diaphragm.

ITEM COLOR SIZE
JF-560 - -

JetFOG Nozzle Service Kit



Includes JF-WRENCH & BLANK tool, 10 BLANK6, 5 JF-525, 3 JF-524, 5 JF-560

ITEM COLOR SIZE
JF-KIT - kit

JetFOG Wrench Tool w/ JetFOG Seat Tool


Combo set for disassembling and reassembling JetFOG nozzles easily.

ITEM COLOR SIZE
JF-WRENCH-C - -

ii ri Smart Controller w Coil


The ii ri Smart Controller is a a battery operated, Bluetooth Connected, irrigation/misting controller that can oprate one solenoid valve without wiring.

Create different programs on your smartphone and upload them to your ii ri easily to change scenarios. Great for quick installations, single propagation benches, outdoor mum fields and more.

ITEM COLOR SIZE
iiri3v - 3/4 in. valve

ii ri Smart Controller on 3/4 in. Solenoid



Ii ri Smart Controller including 3/4 solenoid valve.

ITEM COLOR SIZE
iiriSVB075 - 3/4 in. valve
iiriSVB100 - 1 in. valve

MistTime Misting Controller


The Dramm MistTime Controller is perfect for time or temperature based control of misting valves. With the ability to program each valve independently, the MistTime offers unmatched flexibility. Each valve is operated on a cycle. The timing is variable with the duration operating between 1 second and 60 minutes and the interval time operating between 1 minute and 12 hours. Each valve can be run continuously, between specific times, or even started when the temperature rises above a set point. With the ability to program each valve independently, the controller can operate as a time based mist controller, a pulse-irrigation controller and a mist cooling controller at the same time. In addition, the MistTime offers the option to convert the last valve output to a pump pre-start output. When configured in this manner, the operator is given an option to pre-start a pump prior to any valve operation. The pre-start time is variable. This ensures that the system is properly pressurized when the mist system is in operation. The MistTime is easy to program using a keypad to navigate the menu and enter amounts. For flexibility, the MistTime can be programmed in English, Spanish, French or Dutch. The MistTime operates on 120vAC or 220vAC and includes a 24vAC output. The unit is enclosed in a NEMA 4 rated PVC housing and is easy to wire and install.

ITEM COLOR SIZE
MT-10 - 10 Output

MistTime Manual in Spanish



The MistTime is programmable in English, Spanish, French and Dutch. This manual offers native language support.

ITEM COLOR SIZE
MT-10 Manual ESP - -
MT-10 Manual FRA - -
MT10-TP - -

ProLine Irrigation Controller - 4 Station (expandable)


The ProLine Irrigation Controller offers advanced control features such as multiple program operation, master valve, multiple start times per day, manual operation, and an option to add cellular connectivity to monitor and modify irrigation operation from your phone.

ITEM COLOR SIZE
PL1600-04 - 4 output

ProLine Quick Start Guide


Quick Start Guide for the ProLine Controller. Step-by-step instructions to program the basics.

ITEM COLOR SIZE
ProLineQS - Document

ProLine Installation Guide


Easy instructions showing how to install your ProLine Controller.

ITEM COLOR SIZE
ProLineIG - Document

ProLine Irrigation Controller - 8 Station (expandable)



ITEM COLOR SIZE
PL1600-08 - 8 output
PL1600-12 - 12 output
PL1600-12B - 12 output (base)
PL1600-16 - 16 output
PL1600-20 - 20 output
PL1600-24 - 24 output
PL-1600-M4 - 4 output module
PL-1600-M12 - 12 output module
PL-SLAC - -
PL-SLAC-50 - -
PL-420LS - -

RainPro Manual



The RainPro has been discontinued. The manual remains on line for previous customers.

ITEM COLOR SIZE
RPIC-Manual - -

RainPro 4 Output Expansion Module


The RainPro has been discontinued. However, we still have 4 output modules to upgrade existing units. This module fits into open slots in the RainPro 03, 07 and 11 version to add 4 outputs to increase the capacity of the unit.

ITEM COLOR SIZE
RPIC-M4 - 4 Outputs

2 lph Drip Assembly - 18 in.


ITEM COLOR SIZE
PCAS2L-18 - 18 in

2 lph Drip Assembly - 24 in.



ITEM COLOR SIZE
PCAS2L-24 - 24 in
PCAS2L-36 - 36 in
PCAS2L-48 - 48 in

2 lph (1/2 gph) Pressure Compensated Emitter Barbed - Black Insert


2 liter per hour emitter with barbed outlet for attaching to 0.191 tubing. Offering even flow rates at variable pressures, PCAS emitters provide even water from the first to the last dripper. Our LARGER emitter body allows for a wider labyrinth that prevents clogging by letting debris pass through the emitter.

ITEM COLOR SIZE
PCAS2L - 2 lph

4 lph (1 gph) Pressure Compensated Emitter PressFit - Green Insert


2 liter per hour emitter with barbed outlet for attaching to 0.191 tubing. Offering even flow rates at variable pressures, PCAS emitters provide even water from the first to the last dripper. Our LARGER emitter body allows for a wider labyrinth that prevents clogging by letting debris pass through the emitter.

ITEM COLOR SIZE
PCAS4L - 4 lph

4 lph (1 gph) Pressure Compensated Emitter Barbed - Green Insert


2 liter per hour emitter with barbed outlet for attaching to 0.191 tubing. Offering even flow rates at variable pressures, PCAS emitters provide even water from the first to the last dripper. Our LARGER emitter body allows for a wider labyrinth that prevents clogging by letting debris pass through the emitter.

ITEM COLOR SIZE
PCAS4L-B - 4 lph

8 lph (2 gph) Pressure Compensated Emiiter PressFit - Red Insert


2 liter per hour emitter with barbed outlet for attaching to 0.191 tubing. Offering even flow rates at variable pressures, PCAS emitters provide even water from the first to the last dripper. Our LARGER emitter body allows for a wider labyrinth that prevents clogging by letting debris pass through the emitter.

ITEM COLOR SIZE
PCAS8L - 8 lph

12 lph (3 gph) Pressure Compensated Emitter PressFit - Black Insert


2 liter per hour emitter with barbed outlet for attaching to 0.191 tubing. Offering even flow rates at variable pressures, PCAS emitters provide even water from the first to the last dripper. Our LARGER emitter body allows for a wider labyrinth that prevents clogging by letting debris pass through the emitter.

ITEM COLOR SIZE
PCAS12L - 12 lph

Barrel to barb Adaptor


Connect barrel outlet emitters to 192 tubing with this adaptor.

ITEM COLOR SIZE
MAN1 - 1 outlet 3mm barb

2 Way Manifold


Dramm 2 and 4 Way Manifolds are for use with the MB 4LPH and 8LPH emitters. The Manifolds allow multiple pots to be watered from one emitter.

ITEM COLOR SIZE
MAN2 - 2 outlet 3mm barb

4 Way Manifold


Dramm 2 and 4 Way Manifolds are for use with the MB 4LPH and 8LPH emitters. The Manifolds allow multiple pots to be watered from one emitter.

ITEM COLOR SIZE
MAN4 - 4 outlet 3mm barb

Slim Weight - Zinc Aluminum Alloy


ITEM COLOR SIZE
PCASW - 11 Gram

18 in. - 0.191 in. Tubing



ITEM COLOR SIZE
191-18 Black 18 in.
191-24 Black 24 in.
191-36 Black 35 in.
191-42 Black 42 in.
191-48 Black 48 in.

4 in. dia Pressure Compensated Dribble Ring


Pressure Compensated Rings offer even watering of trees and nursery stock. With a choice of 4 lph (1 gph), 8 lph (2 gph), or 12 lph (4 gph) emitters, each plant gets the same amount of water supplied by Dramm's Dribble Rings.

ITEM COLOR SIZE
PCR4-12 - 12 in. tube

4 in. dia Pressure Compensated Dribble Ring



ITEM COLOR SIZE
PCR4-24 - 24 in. tube
PCR4-36 - 36 in. tube
PCR4-48 - 48 in. tube
PCR6-12 - 12 in. tube
PCR6-24 - 24 in. tube
PCR6-36 - 36 in. tube
PCR6-48 - 48 in. tube
PCR85-12 - 12 in. tube
PCR85-24 - 24 in. tube
PCR85-36 - 36 in. tube
PCR85-48 - 48 in. tube
PCR10-12 - 12 in. tube
PCR10-24 - 24 in. tube
PCR10-36 - 36 in. tube
PCR10-48 - 48 in. tube
PCR13-12 - 12 in. tube
PCR13-24 - 24 in. tube
PCR13-36 - 36 in. tube
PCR13-48 - 48 in. tube

Anchor Stake for Rings


The S3ANCHOR holds dribble rings in the pot, keeping them optimally placed for best water distribution.

ITEM COLOR SIZE
S3ANCHOR - 6

T connector for Dramm PC Rings.


The T-Piece has two barbed, secure connections and one smooth connection to allow for the ring to be easily disconnected.

ITEM COLOR SIZE
T-PIECE - -

1/4 in Microvalve


Barbed Microvalve for drip irrigation. Allows individual pressure compensated drippers to be turned off.

ITEM COLOR SIZE
MTMV-25 - 1/4 in barbs

3mm Barbed Fitting


Barbed fitting

ITEM COLOR SIZE
BARB3 - 3mm

3mm Plug for mistakes


Plug for mistakes when using the 3mm barbed fitting.

ITEM COLOR SIZE
BLANK3 - 3mm

Multi-Tool for Irrigation


Multi-tool for irrigation installation. Cuts PE, punches holes with 3,4,5 mm blades. Inserts barbed components into PE.

ITEM COLOR SIZE
ML-TOOL - Multi

3mm Punch for 16mm or 1/2 Tubing


Easy-to-use 3mm Punch for 16mm or 1/2 Tubing

ITEM COLOR SIZE
PUNCH1650 - 3mm

3mm Replacement blade for PUNCH1650


Replaces standard blade when worn.

ITEM COLOR SIZE
PUNCH1650-B - 3mm

45 deg. Angle Stake 4 in.


Plain barbed stake

ITEM COLOR SIZE
ST-45 - 4 in.

45 deg. Angle Labyrinth Stake 4 in.


Labyrinth Stake

ITEM COLOR SIZE
LST4-45 - 4 in.

Easyloc Inline Valve


Easyloc Inline Valve 16mm x 16mm. Shuts off PE line. Insert as needed. Barb & Compression nut. Needs no additional clamp.

ITEM COLOR SIZE
ITVSL16 - 16mm x 16mm

Easyloc Inline Valve & Fitting


Easyloc Inline Valve 16mm x 3/4in. MPT. Connect PVC to PE. Barb & Compression nut. Needs no additional clamp.

ITEM COLOR SIZE
ITV075SL16 - 16mm x 3/4in

Easyloc Fitting


Easyloc Fitting 16mm x 3/4in. MPT. Connect PVC to PE. Barb & Compression nut. Needs no additional clamp.

ITEM COLOR SIZE
ITF075SL16 - 16mm x 3/4in

Easyloc Tee


Easyloc Tee 16mm. Barb & Compression nut. Needs no additional clamp.

ITEM COLOR SIZE
ITTSL16 - 16mm

Easyloc Elbow


Easyloc Elbow 16mm. Barb & Compression nut. Needs no additional clamp.

ITEM COLOR SIZE
ITESL16 - 16mm

Easyloc Coupling


Easyloc Coupling 16mm. Barb & Compression nut. Needs no additional clamp.

ITEM COLOR SIZE
ITCSL16 - 16mm

Figure 8 Clamp


Figure 8 clamp to close 16mm PE ends.

ITEM COLOR SIZE
600AP8 - 16mm

Floraplus 2 72 in



Floraplus 2 (1L/m2 - cap mat & PP ground cover) 72 x 100' Roll

ITEM COLOR SIZE
FP2-72X100 - 72 in
FP3-72X100 - 72 in
FP2-48X100 - 48 in
FP3-48X100 - 48 in
FP2-96X100 - 96 in

Vivaplus 2 72 in



Vivaplus 2 (3L/m2 - cap mat & PP ground cover)) 72 x 100' Roll

ITEM COLOR SIZE
VP2-72X100 - 72 in
VP3-72X100 - 72 in
VP2-48X100 - 48 in
VP3-48X100 - 48 in
VP2-96X100 - 96 in

Aquafol Filter Cloth 79in



Aquafol Filter Cloth - White 79 x 164' Roll

ITEM COLOR SIZE
AFW-79X164 - 79 in
AFW-48X100 - 48 in

S10 - 1/2MPT ADPT-GREEN PLATE-nozzle select


#10,11,12,13,14,15,16,17,18,20 - Green #1, Black#2, Gray#3

ITEM COLOR SIZE
N-12884-11XX - -

R10 Rotator - 1/2MPT ADPT-RED PLATE-nozzle select


#40, 45, 50, 55, 60 - Red #1 , White #2, Orange #7

ITEM COLOR SIZE
N-9913-11XX - -

R2000WF Rotator - 1/2MPT ADPT-BLUE PLATE-nozzle select


#10,11,12,13,14,15,16,18,20 - Blue #10, Purple #12, Green #14, Red #16, Yellow #18, Brown #20 Purple, Ivory

ITEM COLOR SIZE
N-9928-10XX - -

D10 - 1/2MPT ADPT-GRN PLATE-nozzle select



#10,11,12,13,14,15,16,17,18,20 - Standard flat Black plate

ITEM COLOR SIZE
N-12928-10XX - -
N-9914-13XX - -
N-12927-11XX - -
N-9929-10XX - -
N-13827-12XX - -

Road Guard- Orange (R2000WF, R2000LP)


ITEM COLOR SIZE
N-12213-001 - -

Abot/Riser Base 1.5


The Abot Riser base connects laterals to risers.

ITEM COLOR SIZE
A-050-001-607 - 1.5 in

Male End Fitting 1.5


Male PipeLoc fitting.

ITEM COLOR SIZE
A-050-001-616 - 1.5 in

Female End Fitting 1.5


Female PipeLoc fitting.

ITEM COLOR SIZE
A-050-001-517 - 1.5 in

Riser Pipe (Black) ED x20inch


20 inch riser section for PipeLoc. Threads into Riser Base and connects to other riser pipes to reach desired nozzle height.

ITEM COLOR SIZE
A-032-032-450 - -

Abot/Riser Base 2



ITEM COLOR SIZE
A-063-001-607 - 2 in
A-075-001-607 - 2.5 in
A-090-001-607 - 3 in
A-050-050-621 - 1.5 in
A-063-063-623 - 2 in
A-075-050-624 - 2.5 in/1.5 in
A-075-063-625 - 2.5 in/2 in
A-075-075-626 - 2.5 in
A-090-050-627 - 3 in/1.5in
A-090-063-628 - 3in/2in
A-090-075-629 - 3in/2.5in
A-090-090-630 - 3 in
A-050-050-642 - 1.5 in
A-063-063-644 - 2 in
A-075-050-645 - 2.5 in/1.5 in
A-075-063-646 - 2.5 in/2 in
A-075-075-647 - 2.5 in
A-090-050-648 - 3 in/1.5in
A-090-063-649 - 3 in/2 in
A-090-075-650 - 3 in/2.5 in
A-090-090-651 - 3in
A-063-050-665 - -
A-075-050-666 - -
A-075-063-667 - -
A-090-050-668 - -
A-090-063-669 - -
A-090-075-670 - -
A-050-000-608 - -
A-063-000-608 - -
A-075-000-608 - -
A-090-000-608 - -
A-050-000-509 - 1.5 in
A-063-000-509 - 2 in
A-075-000-509 - 2.5 in
A-090-000-509 - 3 in
A-063-001-616 - 2 in
A-075-001-616 - 2.5 in
A-090-001-616 - 3 in
A-063-001-517 - 2 in
A-075-001-517 - 2.5 in
A-090-001-517 - 3 in
A-050-000-605 - 1.5 in
A-063-000-605 - 2 in
A-075-000-605 - 2.5 in
A-030-000-605 - 3 in
A-050-000-506 - 1.5 in
A-063-000-506 - 2 in
A-075-000-506 - 2.5 in
A-030-000-506 - 3 in
A-032-025-001 - -
A-032-032-014 - -
A-050-000-612 - 1.5 in
A-063-000-612 - 2 in
A-075-000-612 - 2.5 in
A-090-000-612 - 3 in
